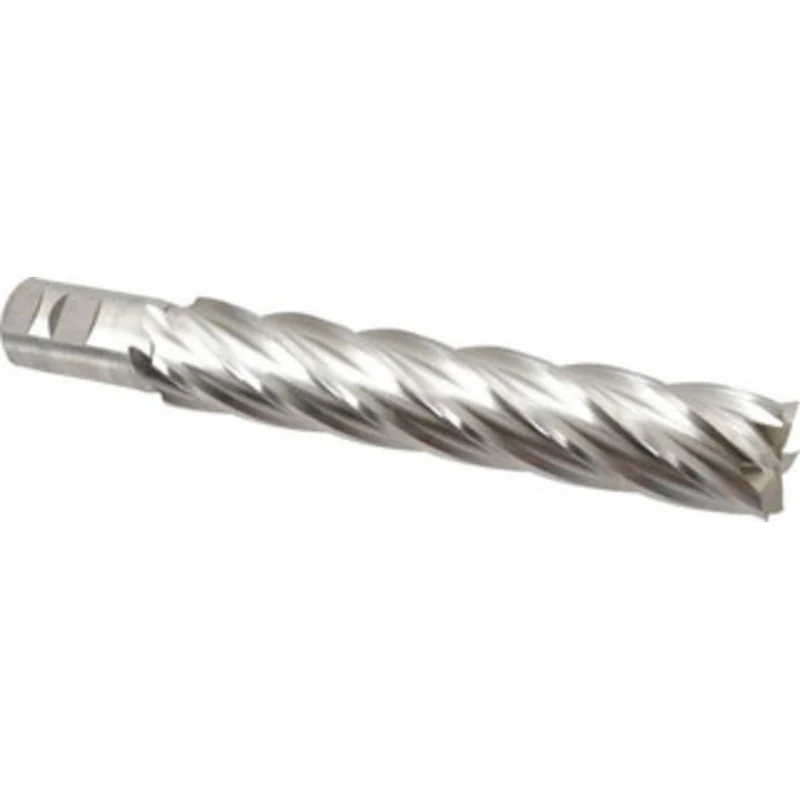

Niagara Cutter 1-1/2, 8 LOC, 1-1/4 Shank Diam, 10-1/2 OAL, 6 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SPC408 17011899 – 33070244

Niagara Cutter 1-1/2″, 8″ LOC, 1-1/4″ Shank Diam, 10-1/2″ OAL, 6 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SPC408

Manufacturer Part #: 17011899

S/N: 33070244

UNSPSC: 27112803

UPC: 698036524999

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.5000
Mill Diameter (Inch)
1-1/2
Number Of Flutes
6
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
8.0000
Length of Cut (Inch)
8
Shank Diameter (Inch)
1-1/4
Shank Diameter (Decimal Inch)
1.2500
Overall Length (Decimal Inch)
10.5000
Overall Length (Inch)
10-1/2
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, Aluminum & Non-Ferrous, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, N, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0005 in
Overall Length Tolerance
+0.0620/0.0000 in
TIR Maximum (Decimal Inch)
0.0010
Series
SPC408
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
