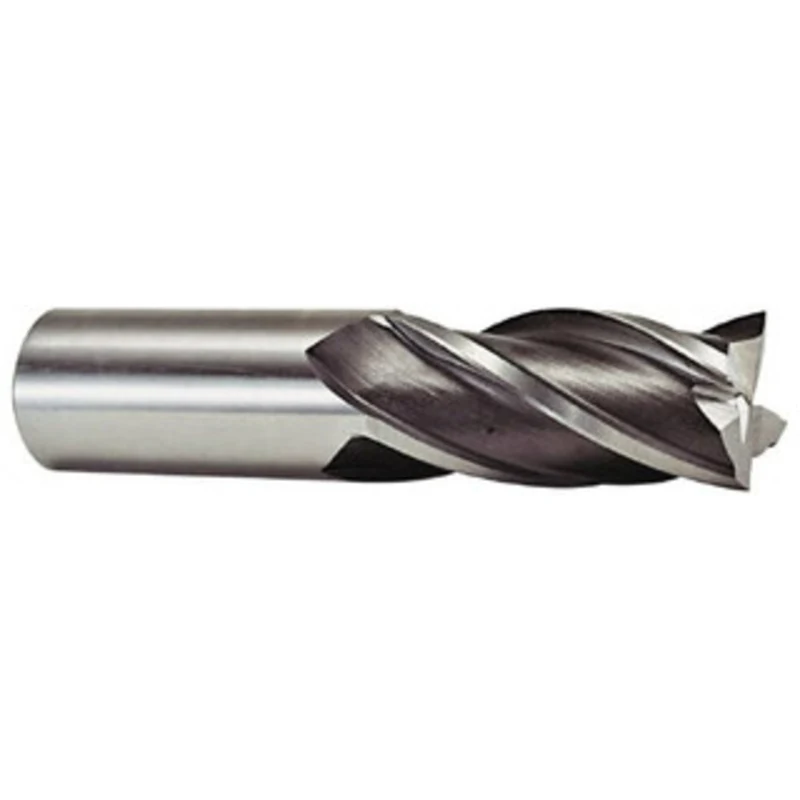

Niagara Cutter 2, 4 LOC, 1-1/4 Shank Diam, 6-1/2 OAL, 6 Flute, Cobalt Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SPC408 17016468 – 45556214

Niagara Cutter 2″, 4″ LOC, 1-1/4″ Shank Diam, 6-1/2″ OAL, 6 Flute, Cobalt Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SPC408

Manufacturer Part #: 17016468

S/N: 45556214

UNSPSC: 27112803

UPC: 698036886714

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
2.0000
Mill Diameter (Inch)
2
Number Of Flutes
6
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
4.0000
Length of Cut (Inch)
4
Shank Diameter (Inch)
1-1/4
Shank Diameter (Decimal Inch)
1.2500
Overall Length (Decimal Inch)
6.5000
Overall Length (Inch)
6-1/2
Single Or Double End
Single
Coating/Finish Family
TiCN
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, Aluminum & Non-Ferrous, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, N, S
Coating/Finish
TiCN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Short
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
+0.000 to -0.003 in
Shank Diameter Tolerance
-0.0001/-0.0005 in
Overall Length Tolerance
+0.0620/0.0000 in
TIR Maximum (Decimal Inch)
0.0010
Series
SPC408
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
