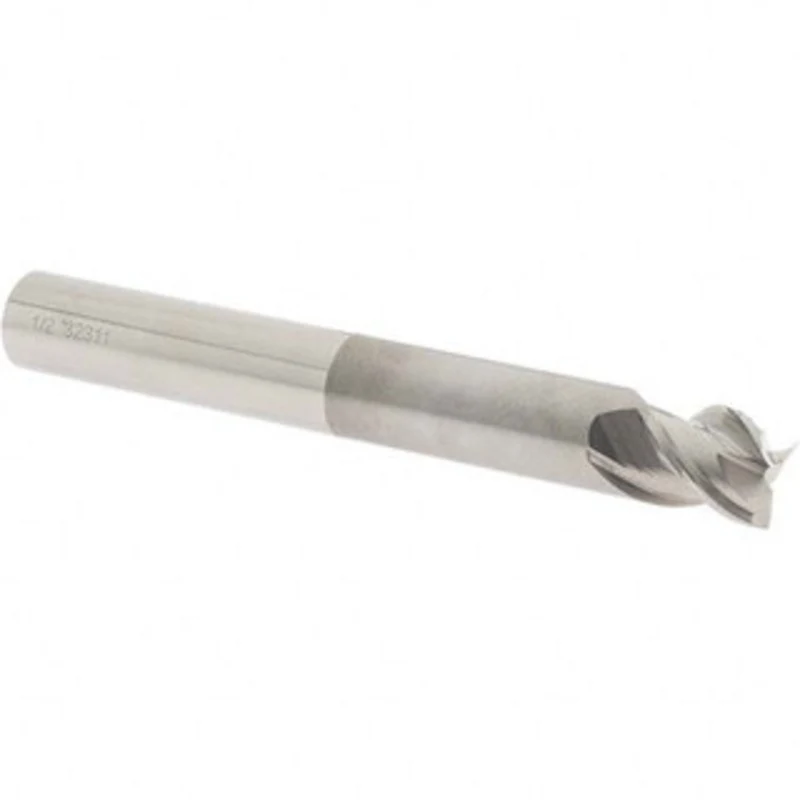

OSG 1/2, 1/2 LOC, 1/2 Shank Diam, 4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, 2-1/8 Extended Reach, Series 2048 20480500 – 88371810

OSG 1/2″, 1/2″ LOC, 1/2″ Shank Diam, 4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, 2-1/8″ Extended Reach, Series 2048

Manufacturer Part #: 20480500

S/N: 88371810

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
4
Overall Length (Inch)
4
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
45
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Long
Reach Length (Inch)
2-1/8
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Mill Diameter Tolerance
+0.000/-0.002 in
Series
2048
UNSPSC Code
27112803
