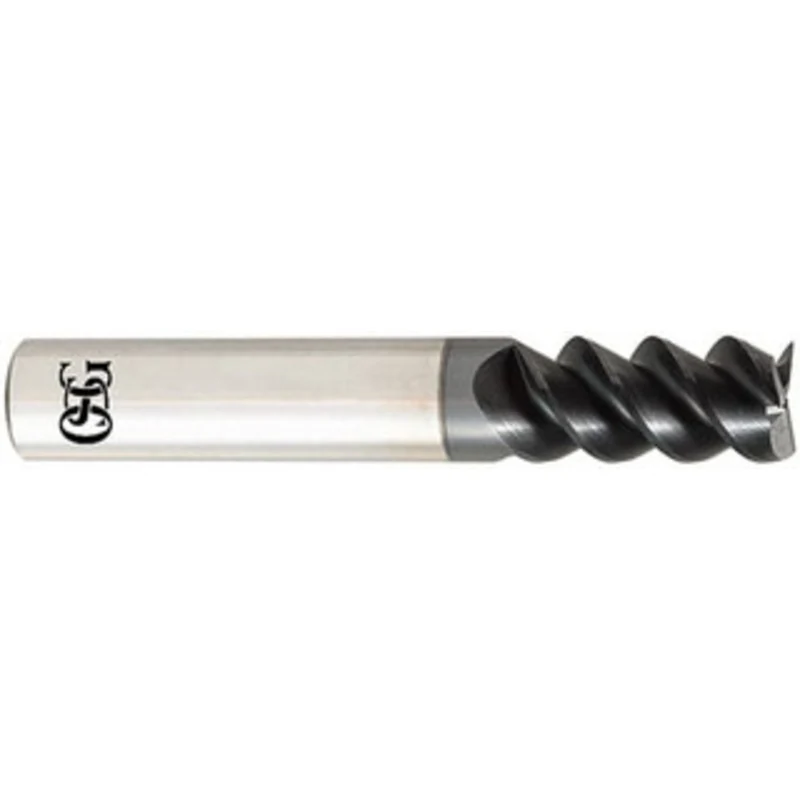

OSG 1/2, 1 LOC, 1/2 Shank Diam, 3 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 60 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP460 HP460-5000 – 87187894

OSG 1/2″, 1″ LOC, 1/2″ Shank Diam, 3″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 60 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP460

Manufacturer Part #: HP460-5000

S/N: 87187894

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
60
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Series
HP460
