OSG 1/2, 2 LOC, 1/2 Shank Diam, 4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 535 5351100 – 75023911

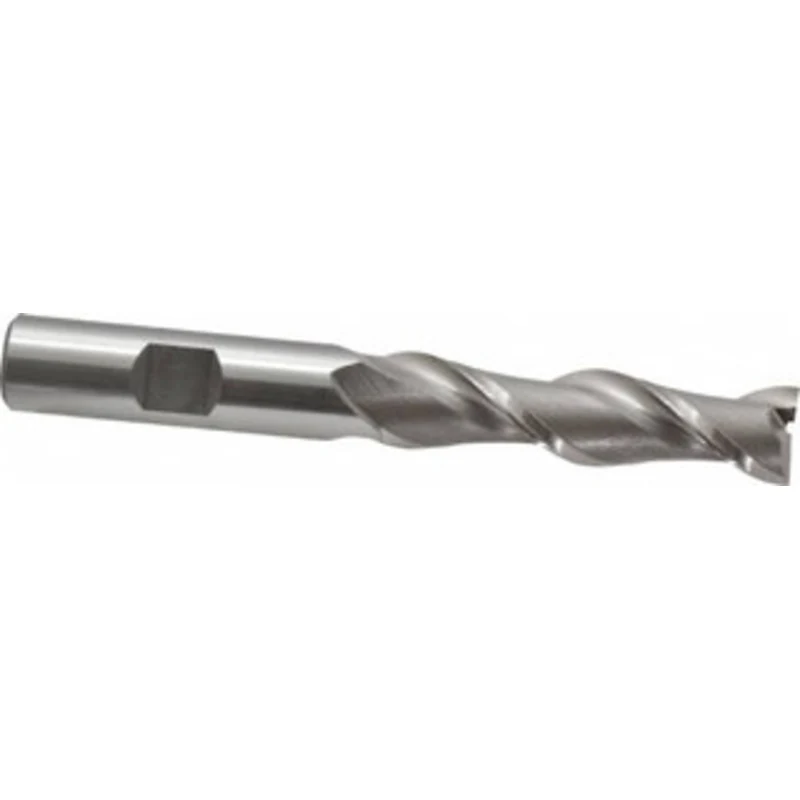

OSG 1/2″, 2″ LOC, 1/2″ Shank Diam, 4″ OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 535

Manufacturer Part #: 5351100

S/N: 75023911

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Long
Length Of Cut Range (Decimal Inch)
2.0000+
Series
535
