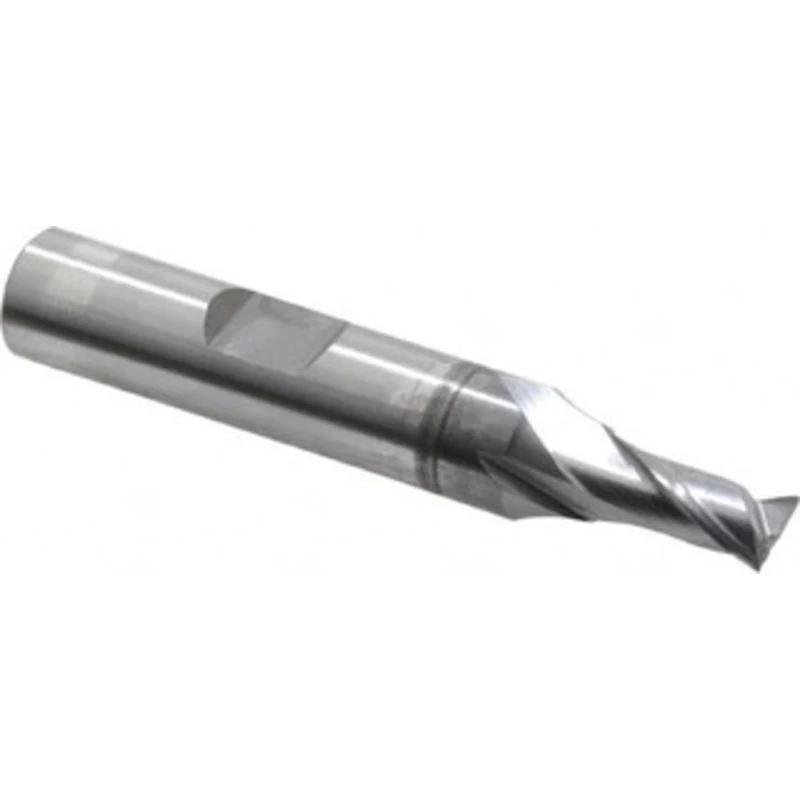

OSG 1/4, 1/2 LOC, 3/8 Shank Diam, 2-5/16 OAL, 2 Flute, Vanadium High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 573 5730508 – 00610659

OSG 1/4″, 1/2″ LOC, 3/8″ Shank Diam, 2-5/16″ OAL, 2 Flute, Vanadium High Speed Steel Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 573

Manufacturer Part #: 5730508

S/N: 00610659

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Vanadium High Speed Steel
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-5/16
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
3% Vanadium
Length Type
Regular
Series
573
