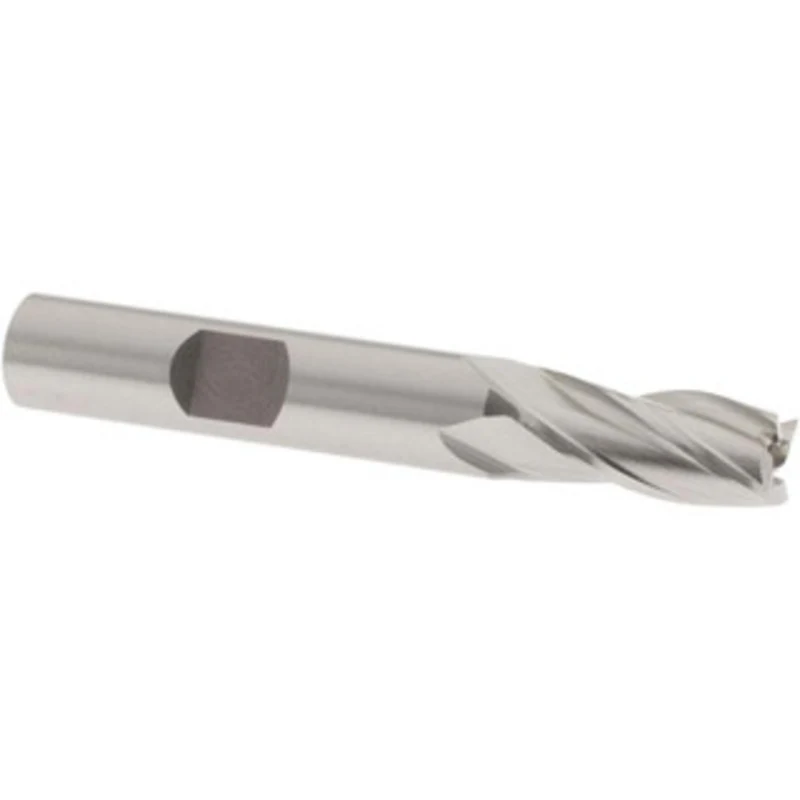

OSG 11/32, 3/4 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute, Series 540 5409400 – 75025973

OSG 11/32″, 3/4″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute, Series 540

Manufacturer Part #: 5409400

S/N: 75025973

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3438
Mill Diameter (Inch)
11/32
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.7000 – 0.8000
Series
540
