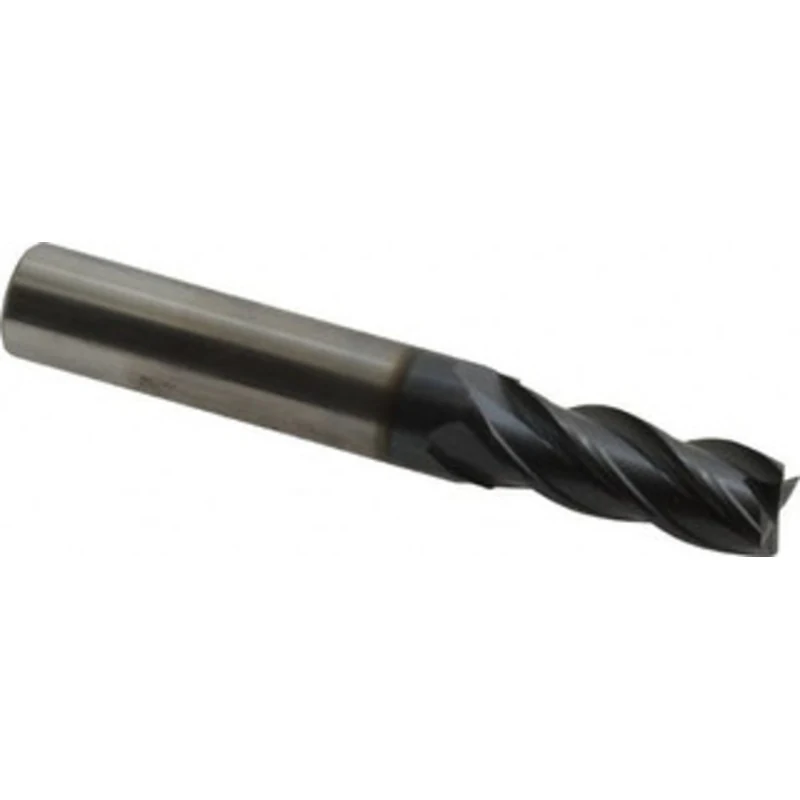

OSG 11/32, 7/8 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441 HP441-3438 – 53416277

OSG 11/32″, 7/8″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441

Manufacturer Part #: HP441-3438

S/N: 53416277

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3438
Mill Diameter (Inch)
11/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.8750
Length of Cut (Inch)
7/8
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
35
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
Series
HP441
