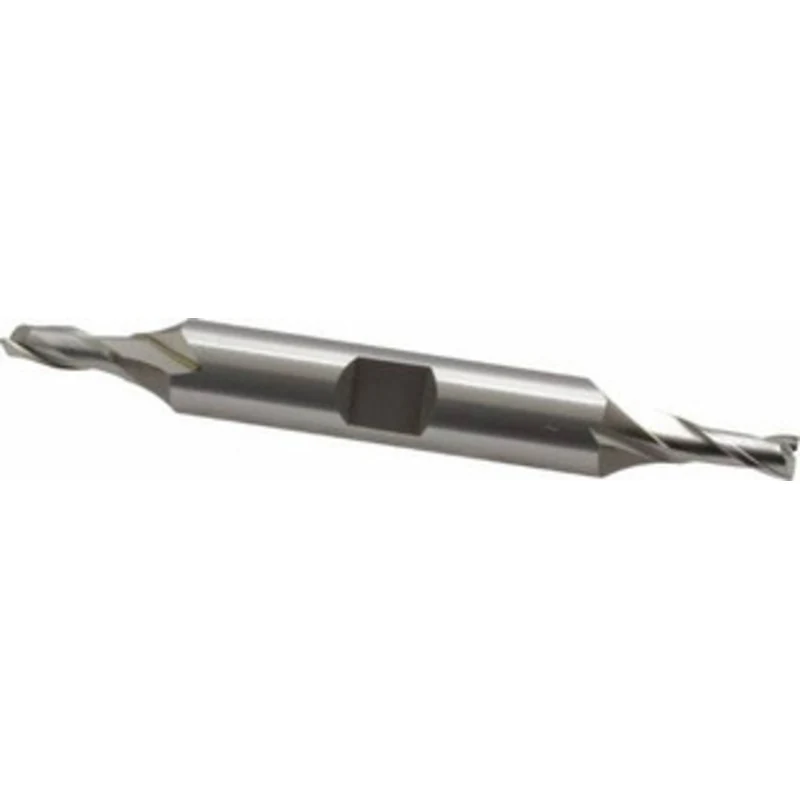

OSG 11/64, 7/16 LOC, 3/8 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522 5226100 – 75022525

OSG 11/64″, 7/16″ LOC, 3/8″ Shank Diam, 3-1/8″ OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522

Manufacturer Part #: 5226100

S/N: 75022525

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1719
Mill Diameter (Inch)
11/64
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.4375
Length of Cut (Inch)
7/16
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
3.1250
Overall Length (Inch)
3-1/8
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Series
522
