Home › Cutting Tools & Abrasives › End Mills › OSG 22mm, 1-1/2 LOC, 7/8 Shank Diam, 3-3/4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 580 5804100 – 75023325
OSG 22mm, 1-1/2 LOC, 7/8 Shank Diam, 3-3/4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 3...
End Mills

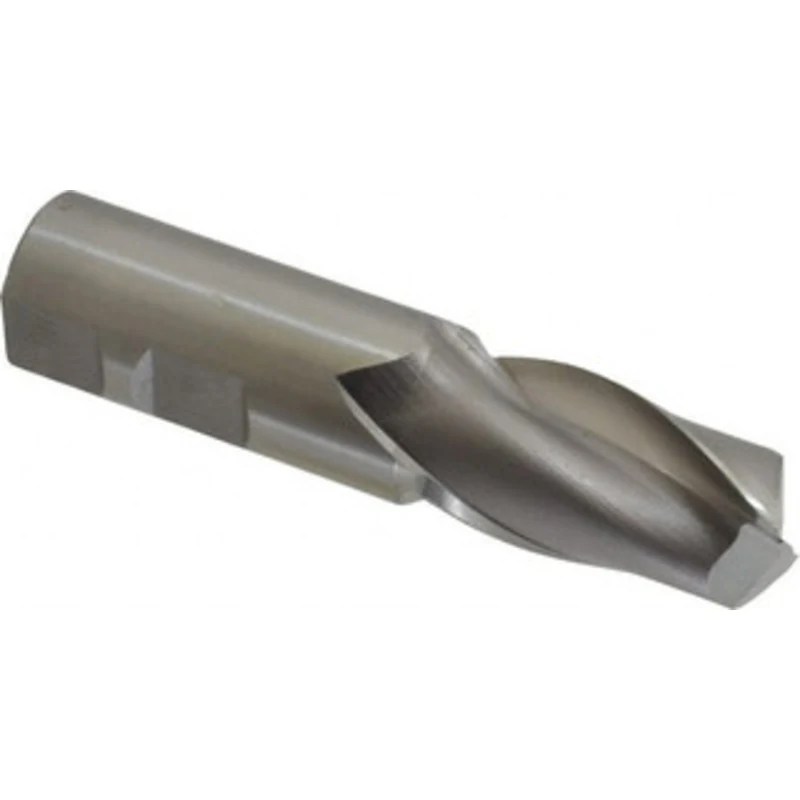

OSG 22mm, 1-1/2 LOC, 7/8 Shank Diam, 3-3/4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 580 5804100 – 75023325

Original price was: $98.77.Current price is: $29.63.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 75023325
CATEGORY: End Mills
Description

OSG 22mm, 1-1/2″ LOC, 7/8″ Shank Diam, 3-3/4″ OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 580

Manufacturer Part #: 5804100

S/N: 75023325

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
22.00
Mill Diameter (Decimal Inch)
0.8661
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.5000
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
7/8
Shank Diameter (Decimal Inch)
0.8750
Overall Length (Inch)
3-3/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Series
580
