Home › Cutting Tools & Abrasives › End Mills › OSG 3/16, 1 LOC, 3/16 Shank Diam, 3-3/8 OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 568 5688000 – 75028928
OSG 3/16, 1 LOC, 3/16 Shank Diam, 3-3/8 OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 H...
End Mills

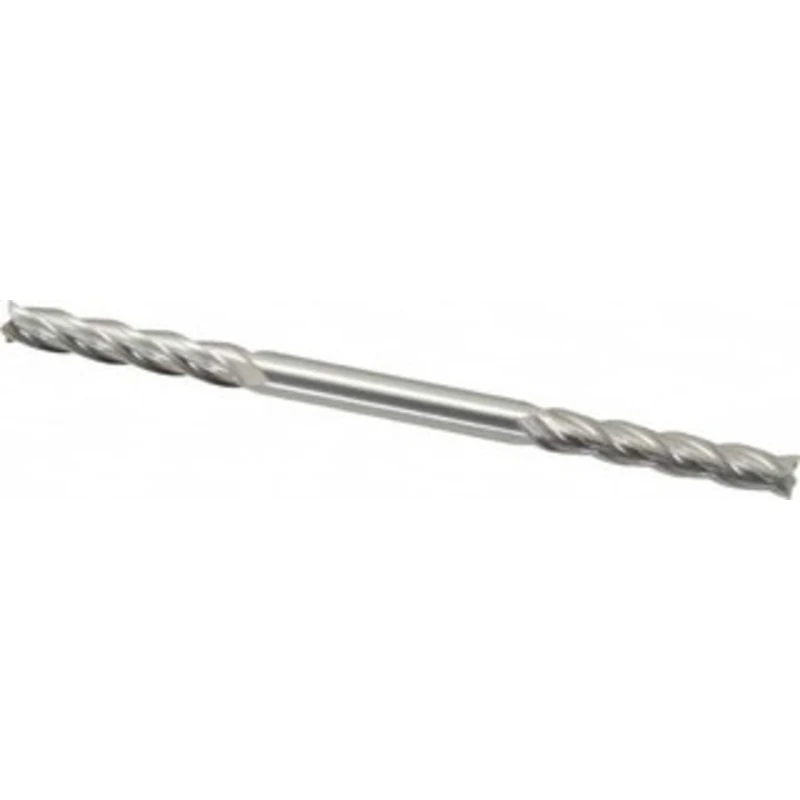

OSG 3/16, 1 LOC, 3/16 Shank Diam, 3-3/8 OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 568 5688000 – 75028928

Original price was: $60.83.Current price is: $18.25.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 75028928
CATEGORY: End Mills
Description

OSG 3/16″, 1″ LOC, 3/16″ Shank Diam, 3-3/8″ OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 568

Manufacturer Part #: 5688000

S/N: 75028928

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Inch)
3-3/8
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Long
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Series
568
