OSG 3/16, 3/4 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Diamond Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 7040 70400916 – 67789768

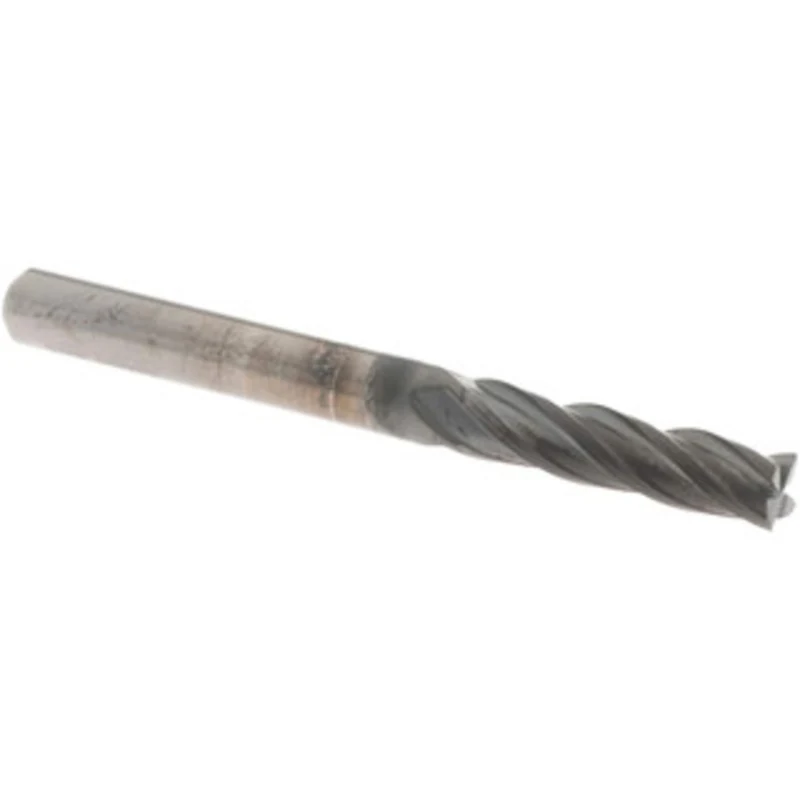

OSG 3/16″, 3/4″ LOC, 3/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Diamond Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 7040

Manufacturer Part #: 70400916

S/N: 67789768

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.7000 – 0.8000
Mill Diameter Tolerance
+0.000/-0.002 in
Series
7040
