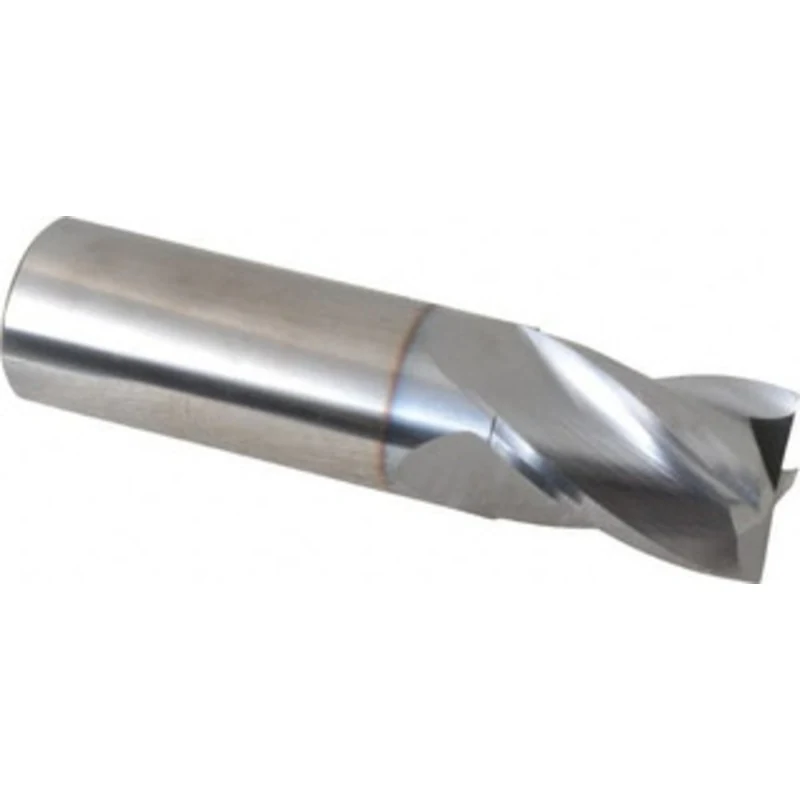

OSG 3/4, 1 LOC, 3/4 Shank Diam, 3 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 414 414-750008 – 55148688

OSG 3/4″, 1″ LOC, 3/4″ Shank Diam, 3″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 414

Manufacturer Part #: 414-750008

S/N: 55148688

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
+0.000/-0.001 in
Shank Diameter Tolerance
+0.00000/-0.0005 in
Series
414
