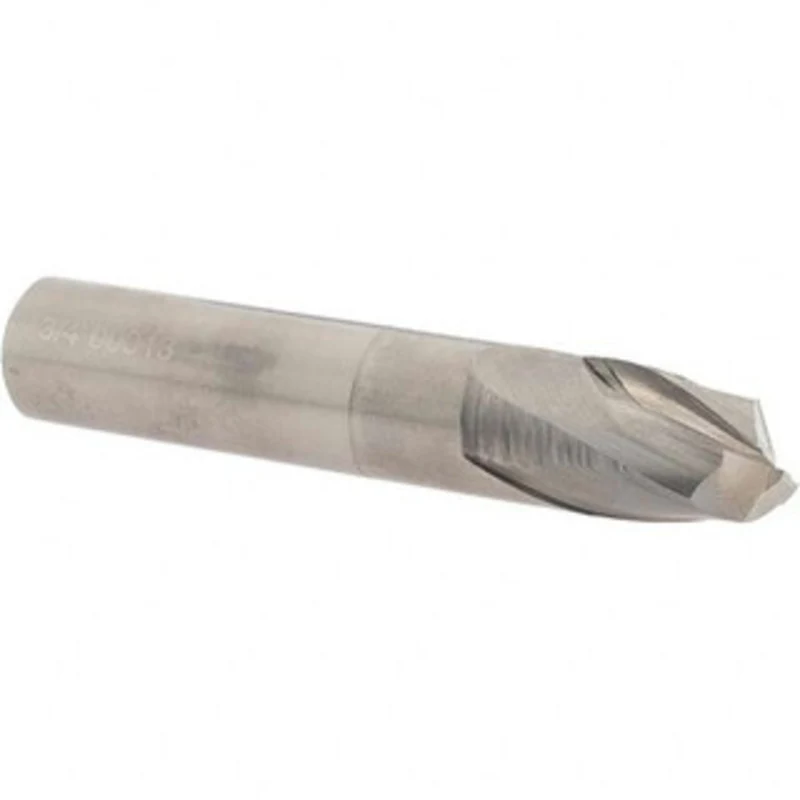

OSG 3/4, 3/4 LOC, 3/4 Shank Diam, 4 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2 Extended Reach, Series 2023 20231300 – 88369418

OSG 3/4″, 3/4″ LOC, 3/4″ Shank Diam, 4″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2″ Extended Reach, Series 2023

Manufacturer Part #: 20231300

S/N: 88369418

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Regular
Neck Diameter (Decimal Inch)
0.7460
Reach Length (Inch)
2
Reach Length (Decimal Inch)
2.0000
Length Of Cut Range (Decimal Inch)
0.7000 – 0.8000
Mill Diameter Tolerance
+0.000/-0.002 in
Series
2023
