Home › Cutting Tools & Abrasives › End Mills › OSG 3.5mm, 10mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 8120 8502035 – 09820481

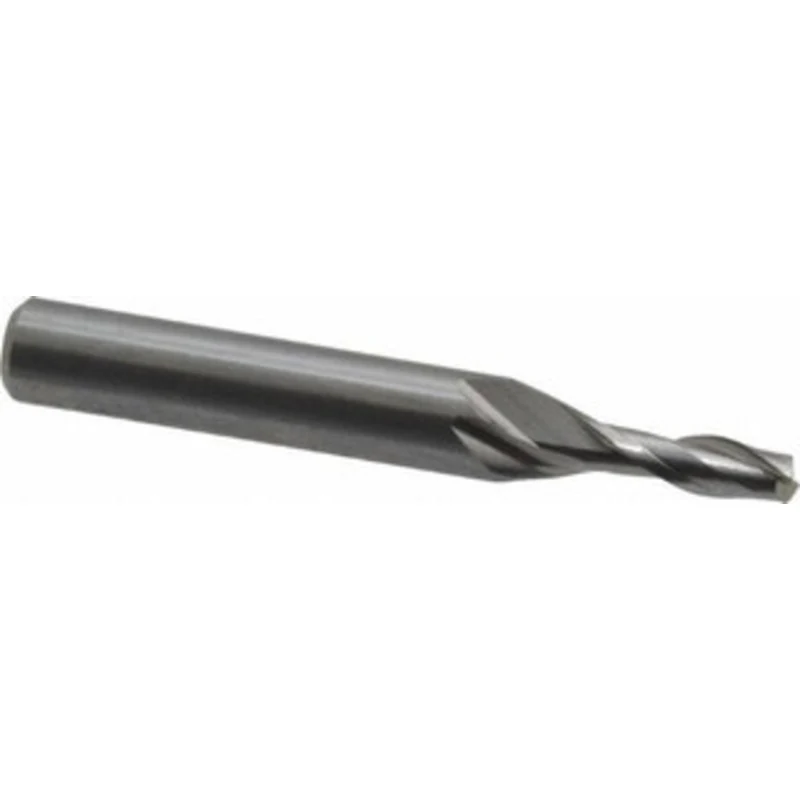

OSG 3.5mm, 10mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Fl...
End Mills

OSG 3.5mm, 10mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 8120 8502035 – 09820481

Original price was: $86.40.Current price is: $25.92.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 9820481
CATEGORY: End Mills
Description

OSG 3.5mm, 10mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 8120

Manufacturer Part #: 8502035

S/N: 09820481

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
3.50
Mill Diameter (Decimal Inch)
0.1378
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3937
Length of Cut (mm)
10.00
Shank Diameter (mm)
6.00
Overall Length (mm)
45.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Series
8120

Product Information
