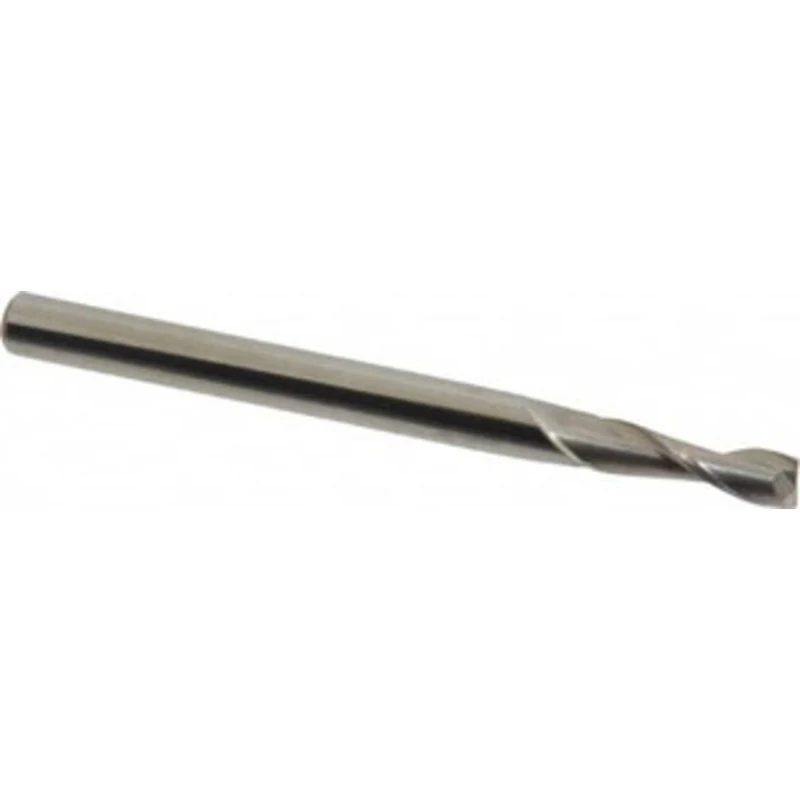

OSG 3.5mm, 12mm LOC, 4mm Shank Diam, 51mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 402 402-1378 – 55147540

OSG 3.5mm, 12mm LOC, 4mm Shank Diam, 51mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 402

Manufacturer Part #: 402-1378

S/N: 55147540

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
3.50
Mill Diameter (Decimal Inch)
0.1378
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.4724
Length of Cut (mm)
12.00
Shank Diameter (mm)
4.00
Overall Length (mm)
51.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Series
402
