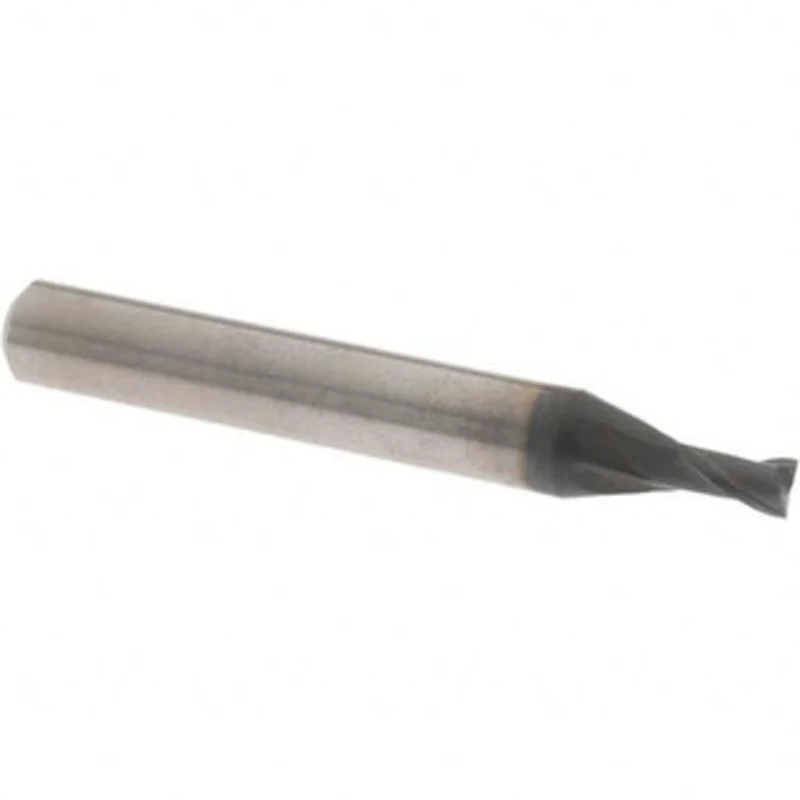

OSG 3.7mm, 5.6mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, WXL Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3720 3181837 – 68644087

OSG 3.7mm, 5.6mm LOC, 6mm Shank Diam, 45mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, WXL Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3720

Manufacturer Part #: 3181837

S/N: 68644087

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
3.70
Mill Diameter (Decimal Inch)
0.1457
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.2205
Length of Cut (mm)
5.60
Shank Diameter (mm)
6.00
Overall Length (mm)
45.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Extra Fine
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.2000 – 0.3000
Mill Diameter Tolerance
+0.00/-0.02 mm
Series
3720
