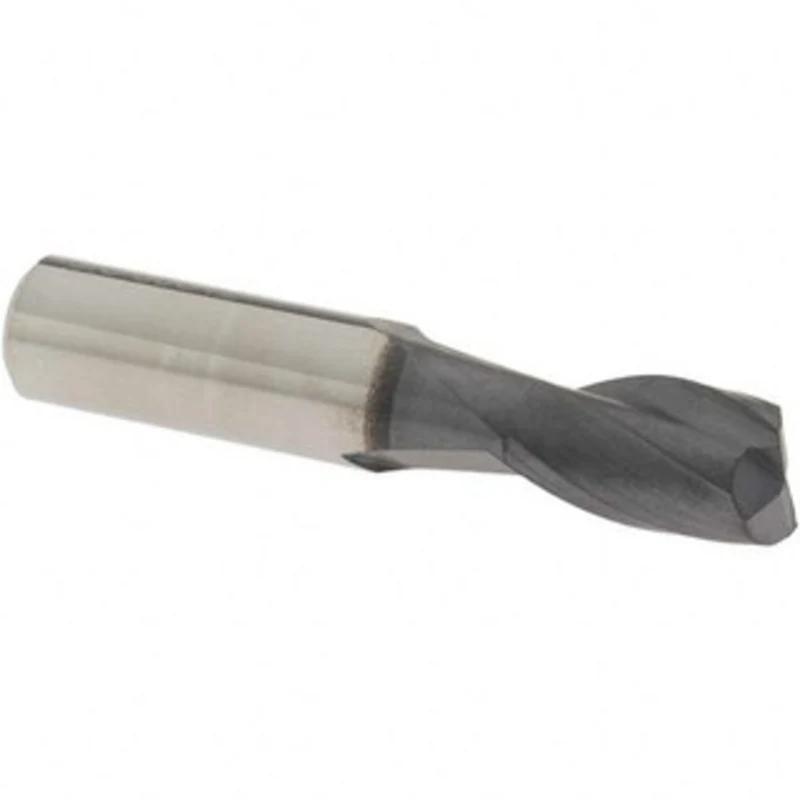

OSG 3/8, 5/8 LOC, 3/8 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 412 412-375011 – 55147938

OSG 3/8″, 5/8″ LOC, 3/8″ Shank Diam, 2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 412

Manufacturer Part #: 412-375011

S/N: 55147938

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Series
412
