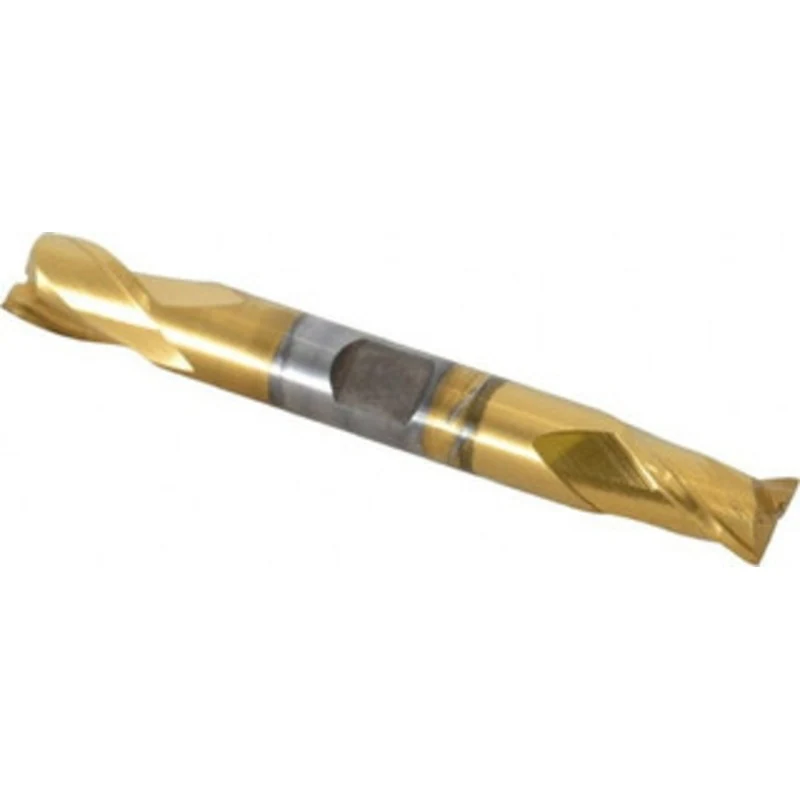

OSG 3/8, 9/16 LOC, 3/8 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522 5220505 – 75022947

Original price was: $80.33.Current price is: $24.10.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 75022947
CATEGORY: End Mills
Description

OSG 3/8″, 9/16″ LOC, 3/8″ Shank Diam, 3-1/8″ OAL, 2 Flute, Cobalt Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 522

Manufacturer Part #: 5220505

S/N: 75022947

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.5625
Length of Cut (Inch)
9/16
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
3-1/8
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Series
522

Product Information
