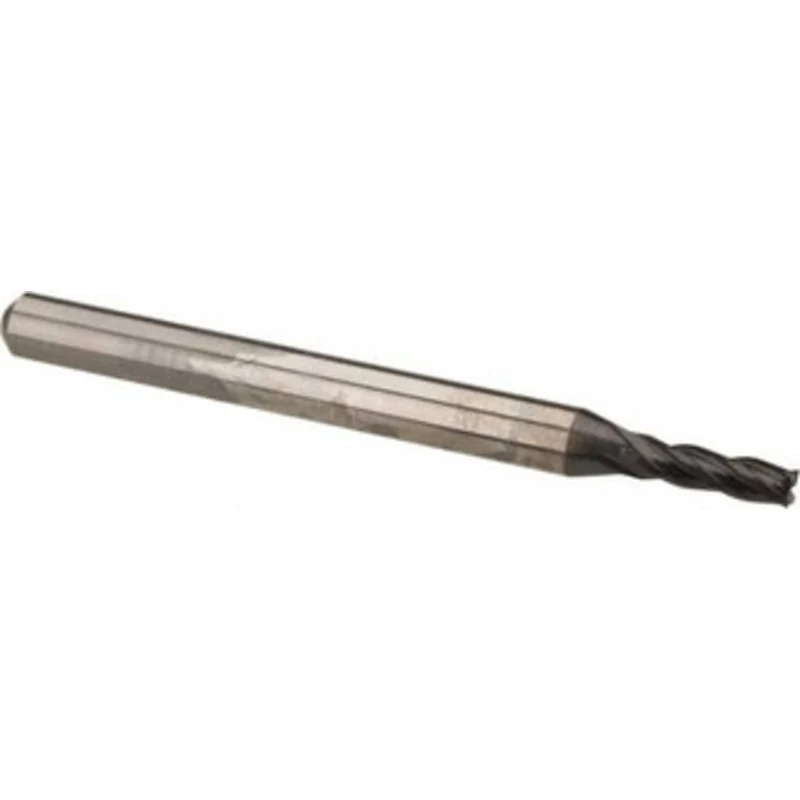

OSG 5/64, 1/4 LOC, 1/8 Shank Diam, 1-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, WXL Finish, Spiral F...
End Mills

OSG 5/64, 1/4 LOC, 1/8 Shank Diam, 1-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, WXL Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3604 36040211 – 51025906

Original price was: $39.80.Current price is: $11.94.

Availability: 10 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 51025906
CATEGORY: End Mills
Description

OSG 5/64″, 1/4″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, WXL Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3604

Manufacturer Part #: 36040211

S/N: 51025906

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0781
Mill Diameter (Inch)
5/64
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.2500
Length of Cut (Inch)
1/4
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.2000 – 0.3000
Mill Diameter Tolerance
+0.0000/-0.0008 in
Series
3604
