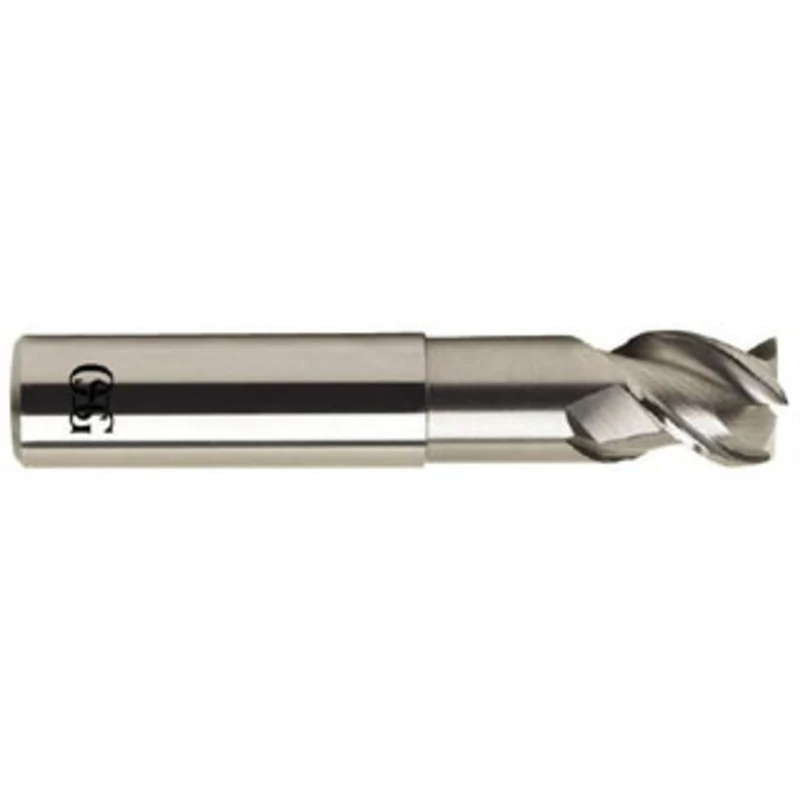

OSG 5/8, 5/8 LOC, 5/8 Shank Diam, 3-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, 1-5/8 Extended Reach, Series 2043 20430900 – 88371620

OSG 5/8″, 5/8″ LOC, 5/8″ Shank Diam, 3-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, 1-5/8″ Extended Reach, Series 2043

Manufacturer Part #: 20430900

S/N: 88371620

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Inch)
3-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
45
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Length Type
Regular
Neck Diameter (Decimal Inch)
0.6210
Reach Length (Inch)
1-5/8
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Series
2043
