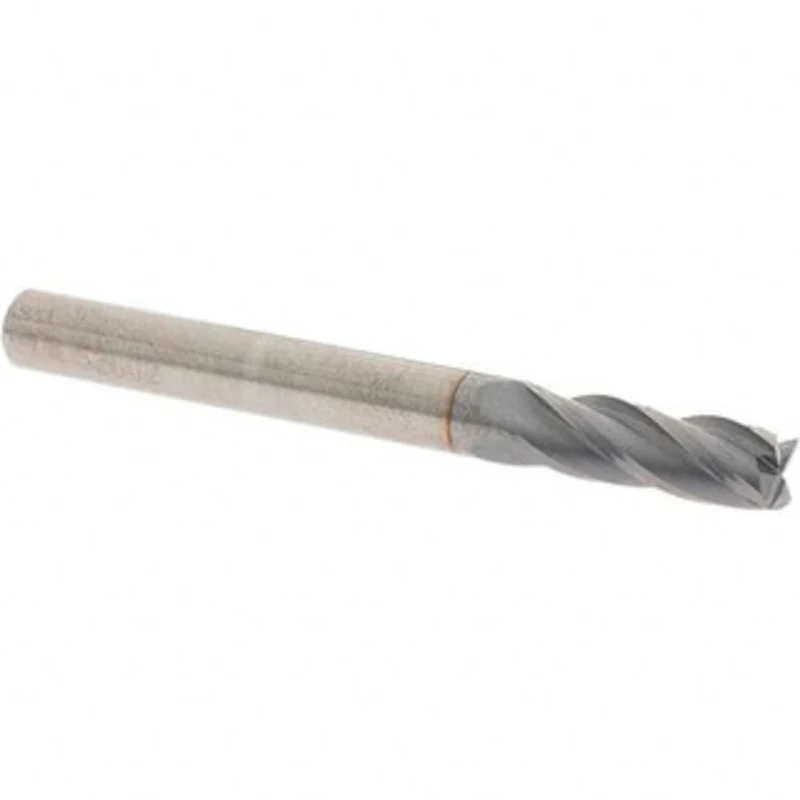

OSG 1/4, 3/4 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral F...
End Mills

OSG 5mm, 16mm LOC, 5mm Shank Diam, 51mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441 HP441-1968 – 53416129

Original price was: $40.27.Current price is: $12.08.

Availability: 7 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 53416129
CATEGORY: End Mills
Description

OSG 5mm, 16mm LOC, 5mm Shank Diam, 51mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441

Manufacturer Part #: HP441-1968

S/N: 53416129

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
5.00
Mill Diameter (Decimal Inch)
0.1969
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6299
Length of Cut (mm)
16.00
Shank Diameter (mm)
5.00
Overall Length (mm)
51.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
35
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Series
HP441

Product Information
