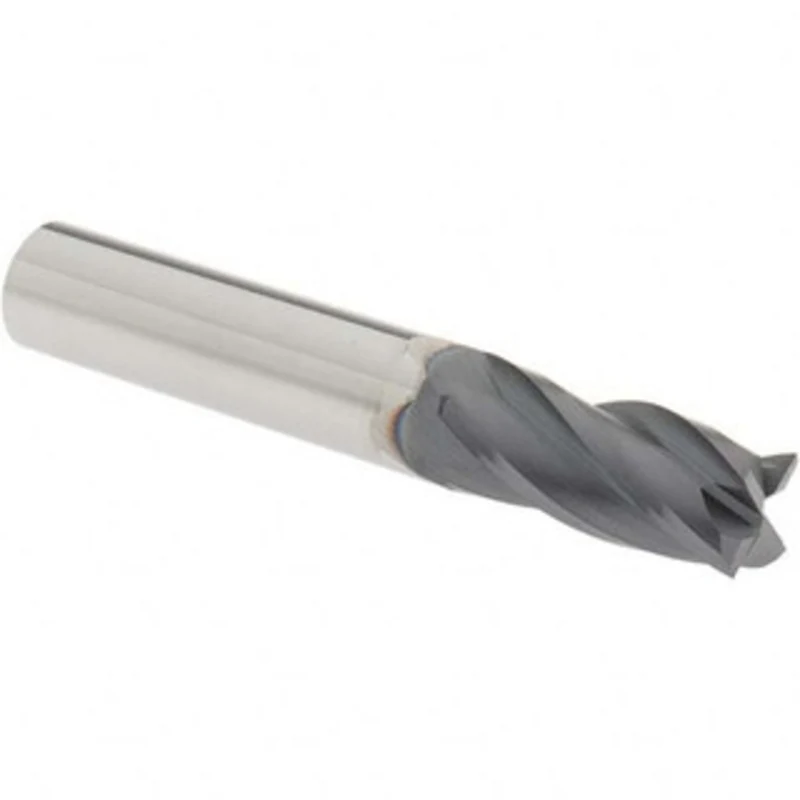

OSG 7/16, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 404 404-437511 – 00650549

OSG 7/16″, 1″ LOC, 7/16″ Shank Diam, 2-3/4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 404

Manufacturer Part #: 404-437511

S/N: 00650549

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4375
Mill Diameter (Inch)
7/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
7/16
Shank Diameter (Decimal Inch)
0.4375
Overall Length (Inch)
2-3/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.001 in
Shank Diameter Tolerance
+0.00000/-0.0005 in
Series
404
