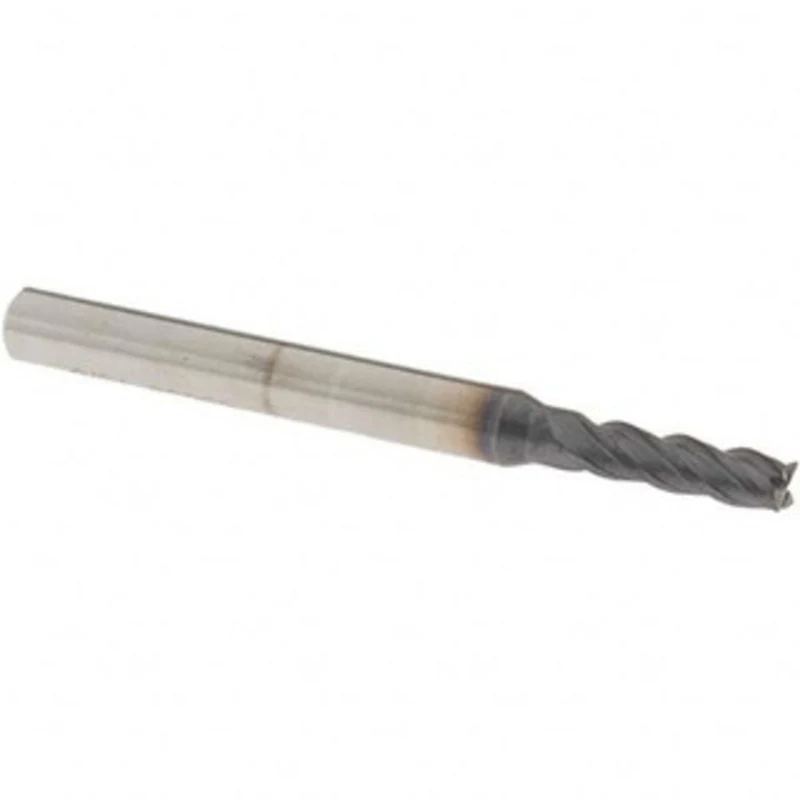

OSG 9/64, 1/2 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441 HP441-1406 – 53416335

OSG 9/64″, 1/2″ LOC, 3/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series HP441

Manufacturer Part #: HP441-1406

S/N: 53416335

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1406
Mill Diameter (Inch)
9/64
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
35
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Series
HP441
