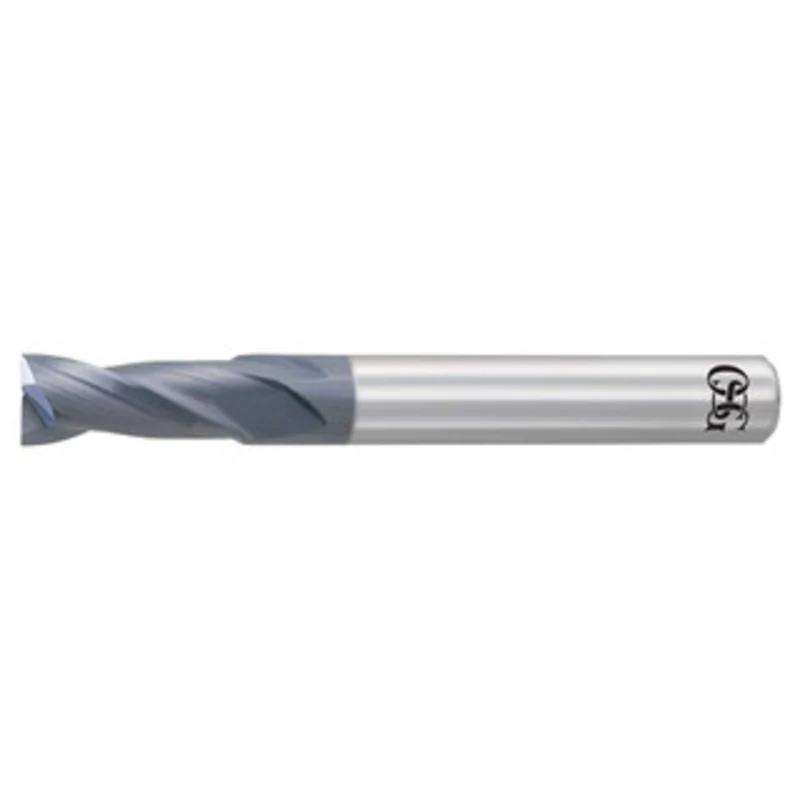

OSG Square End Mill 3182031 – 56199466

OSG Square End Mill

Manufacturer Part #: 3182031

S/N: 56199466

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
3.10
Mill Diameter (Decimal Inch)
0.1220
Number Of Flutes
2
End Mill Material
Solid Carbide
Shank Diameter (mm)
6.00
Shank Diameter (Decimal Inch)
0.2362
Overall Length (mm)
45.00
Single Or Double End
Single
Coating/Finish Family
WXL
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, Hardened Materials
Primary Workpiece Material Code
P, M, K, H
Coating/Finish
WXL
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Series
3721
System Of Measurement
Metric
UNSPSC Code
27112803
