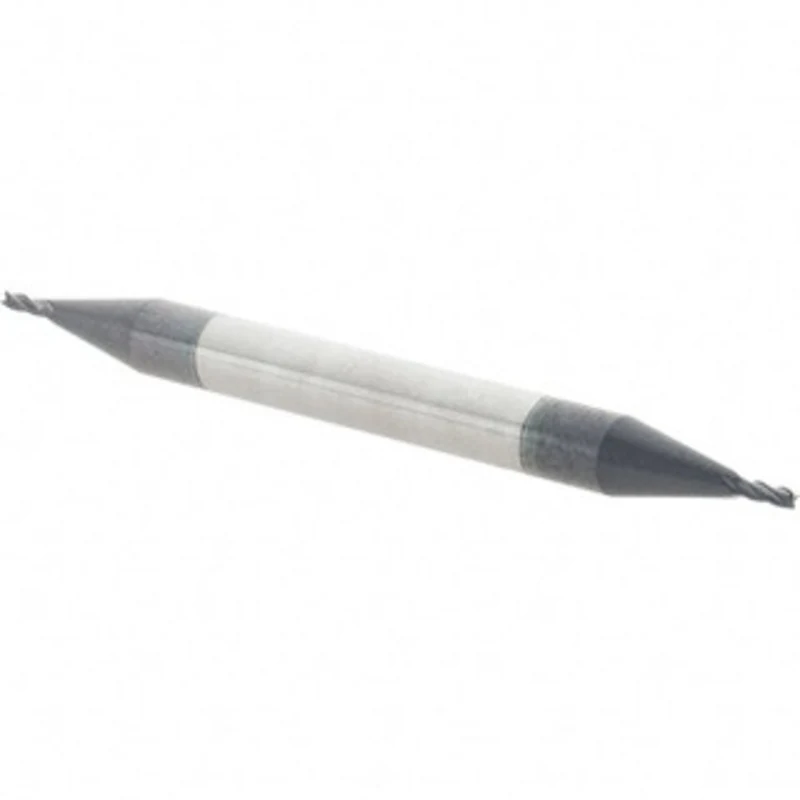

OSG Square End Mill 424-031211 – 89999288

OSG Square End Mill

Manufacturer Part #: 424-031211

S/N: 89999288

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0313
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Inch)
5/64in
Shank Diameter (Inch)
1/8in
Shank Diameter (Decimal Inch)
0.125
Overall Length (Decimal Inch)
1.5
Overall Length (Inch)
1-1/2in
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Coating/Finish
TiAlN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Neck Diameter (Decimal Inch)
0.0313in
Shank Diameter Tolerance
+0.0000 to -0.0020 in
Series
424
UNSPSC Code
27112803
