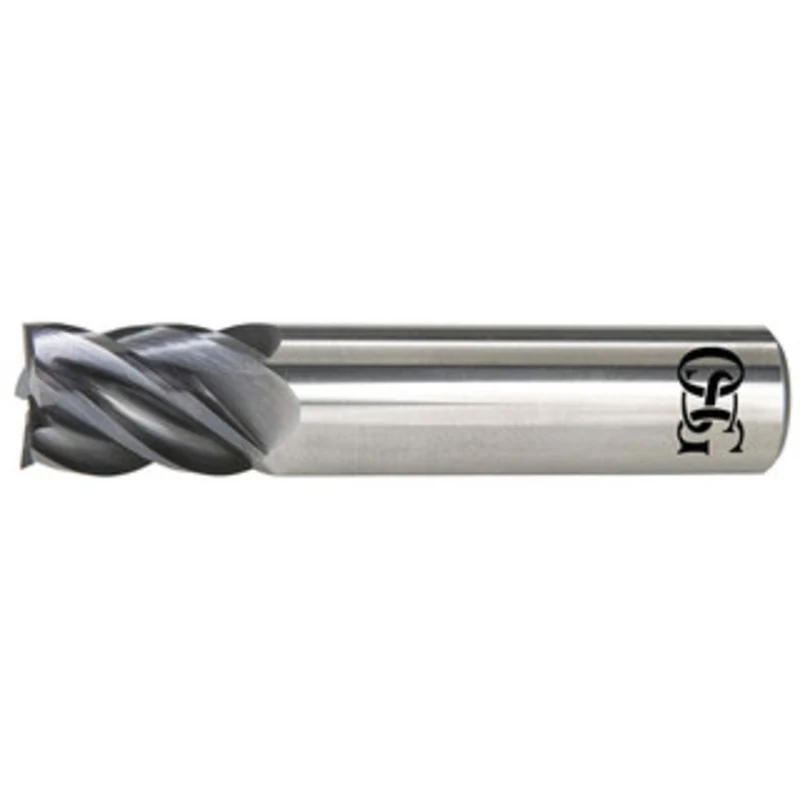

OSG VGM5, 1/4 Diam, 3/4 LOC, 1/4 Shank Diam, 2-1/2 OAL, 5-Flute Carbide Square End Mill Single End, EXO Finish, Helical Flute, Centercutting, RH Cut, RH Flute VGM5-0057 – 13852181

OSG VGM5, 1/4″ Diam, 3/4″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 5-Flute Carbide Square End Mill Single End, EXO Finish, Helical Flute, Centercutting, RH Cut, RH Flute

Manufacturer Part #: VGM5-0057

S/N: 13852181

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Fractional Inch)
1/4
Flute Type
Helical
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut (Inch)
3/4
Coating/Finish
EXO
Centercutting
Yes
End Type
Single
Flute Direction
Right Hand
Extended Reach
No
Shank Diameter (Inch)
1/4
Mill Diameter (Decimal Inch)
0.2500
Length of Cut (Decimal Inch)
0.7500
Shank Type
Straight-Cylindrical
Length Type
Regular
Shank Diameter (Decimal Inch)
0.2500
Variable Helix
No
Variable Index
Yes
Helix Angle
40
Material Grade
Micrograin
Cutting Direction
Right Hand
Series
VGM5
UNSPSC Code
27112803
