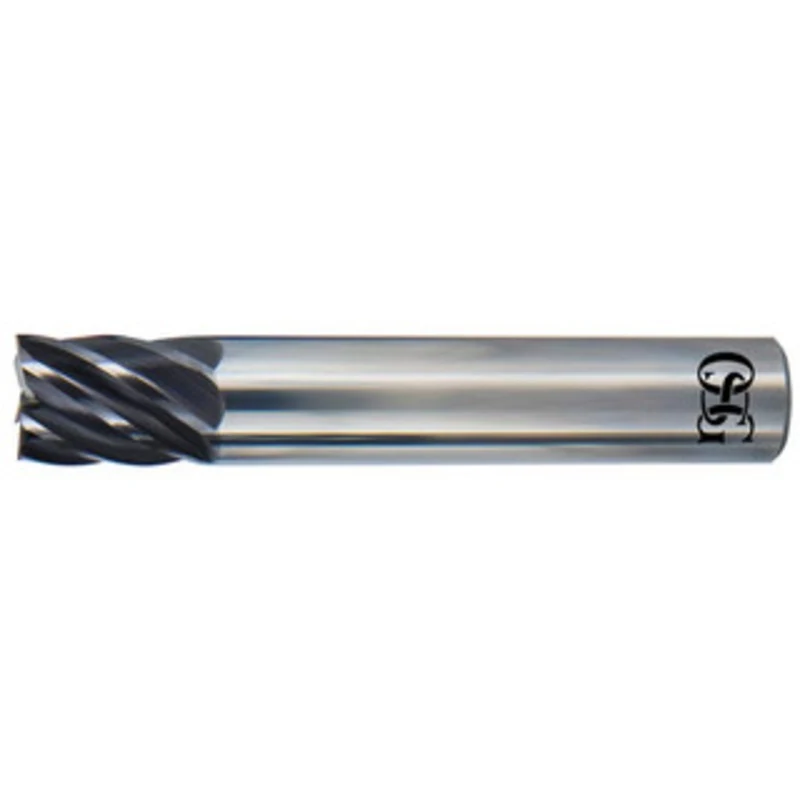

OSG VGM7, 3/8 Diam, 9/16 LOC, 3/8 Shank Diam, 2 OAL, 7-Flute Carbide Square End Mill Single End, EXO Finish, Helical Flute, RH Cut, RH Flute VGM7-0041 – 13851480

OSG VGM7, 3/8″ Diam, 9/16″ LOC, 3/8″ Shank Diam, 2″ OAL, 7-Flute Carbide Square End Mill Single End, EXO Finish, Helical Flute, RH Cut, RH Flute

Manufacturer Part #: VGM7-0041

S/N: 13851480

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Fractional Inch)
3/8
Flute Type
Helical
Number Of Flutes
7
End Mill Material
Solid Carbide
Length of Cut (Inch)
9/16
Coating/Finish
EXO
Centercutting
No
End Type
Single
Flute Direction
Right Hand
Extended Reach
No
Shank Diameter (Inch)
3/8
Mill Diameter (Decimal Inch)
0.3750
Length of Cut (Decimal Inch)
0.5625
Shank Type
Straight-Cylindrical
Length Type
Stub
Shank Diameter (Decimal Inch)
0.3750
Variable Helix
No
Variable Index
Yes
Helix Angle
36
Material Grade
Micrograin
Cutting Direction
Right Hand
Series
VGM7
UNSPSC Code
27112803
