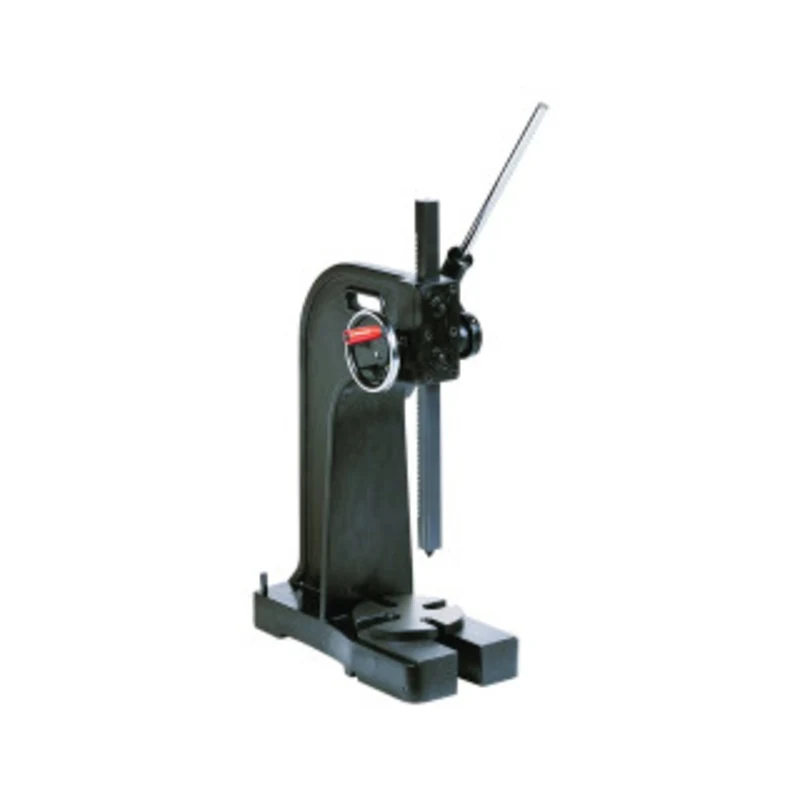

Palmgren Ratcheting arbor press, 3 ton – 61302

Palmgren Ratcheting arbor press, 3 ton – 9661302

Allows the operator to maintain the arm in the optimal leverageposition with consistent application of force. In addition, it hasmore clearance over the table for broaching or pressing largeitems. It is counterweighted for rapid handle return and has aquick ram advance via the presss side-mounted handwheel.

Delivers the heavy force needed for riveting, squeezing, punching,bending, and other pressing applications. Removable machinedsteel anvil provides accurate work support in four slotpositions. A lockable fine adjustment adjusting screw accuratelylimits the depth of the ram stroke.

Punches or tools may be added to the end of the ram with the aidof a magnetic insert. The ram is reversible with one end solid andthe other end with a hole and magnet to hold bits and tools.

• Sturdy, cast-iron construction
• Rugged steel ram is driven by a machined pinion
• Base drilled for mounting on a bench or pedestal
• Includes three piece bit set – 1 pointed, 1 round and 1 squareend bit, and a removable steel anvil
• The base is machine to hold the three bit set

• Specification
  Description

  Model
  RP30

  Force (Ton)
  3.0

  Lever Ratio
  38.6:1

  Swing (in)
  13-3 / 4

  Anvil Diameter (in)
  8

  Max Work Height (In)
  17-3 / 4

  Ram Dimensions (in)
  1-1 / 4″ x 1-1 / 4

  Height (In)
  27-3 / 4

  Base Dimensions (In)
  10″ x 21-3 / 8

  Weight (lb)
  175
