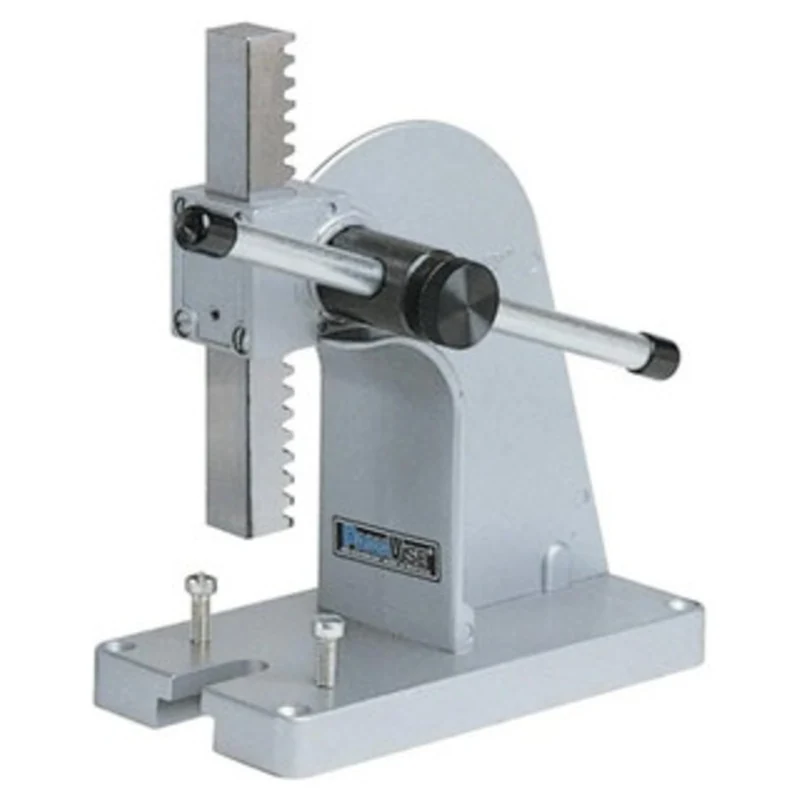

Panavise Precision PanaPress 502
1/4 Ton Manual Arbor Press
This precision 1/4 ton (227kg) PanaPress (arbor press) is extremely useful in manufacturing or as a repair tool.
Features:
- Ideal for pressing bearings, sleeves or collars, forming and assembly of small parts, staking, riveting, broaching, etc.
- Weighs only 6 lbs. Stands 7″ and is built to exert pressure up to 1/4 ton.
- Arbor and table-plate are die-cast of high strength Zamak III.
- Operating mechanism of hardened and ground steel.
- Four adjustable Nylon gibs for precise ram control. Gibs are self-lubricating and wear resistant.
- Throat depth 2-1/8″. Vertical capacity 3-1/2″.
- Base dimensions 3-5/8″ x 7″
- Ram size 3/4″ sq. x 6-1/4″
- Reversible ram applies up to 1/4 ton (500 lbs. / 227kg) of pressure and is 0.75″ x 0.75″ (19.1mm x 19.1mm) square and 5.875″ (149.2mm) long
- One end of the ram is reamed 0.251 (6.4mm) for adding tooling
- Arm is 8″ (203.2mm) long
- Base footprint is 3.7″ x 7″ (94mm x 177.8mm) and includes four 0.25″ (6.3mm) holes countersunk at the corners for bolting to a work surface
- Two additional holes for mounting Retrofit Kits on the base are pre-drilled and tapped 1/4-20 and may be used for customer tooling
- Height (from base to top of back – not including variable ram height or arm length): 7″ (177.8mm), Weight: 5.4 lbs. (2.5kg)
Specifications:
Manufacturer Part #
502
Power Type
Manual
Pressure
1/4 Ton
Ram Width/Diameter (Inch)
3/4
Throat Depth (Inch)
2-1/8
Maximum Work Height (Inch)
4
Maximum Work Width/Diameter (Inch)
3.7000
Base Width (mm)
93.98
Base Width (Decimal Inch)
3.7000
Base Depth (mm)
177.80
Base Depth (Inch)
7
Overall Height (mm)
177.80
Overall Height (Inch)
7
