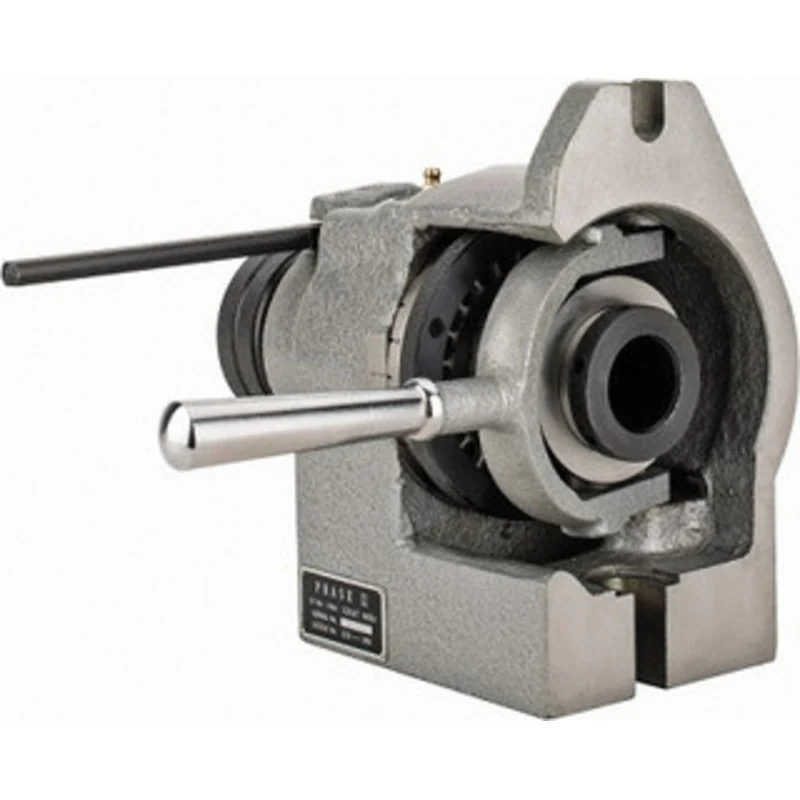

Phase II, 5C Horizontal/Vertical Collet Index Fixture – 225-205

Phase II, 5C Horizontal/Vertical Collet Index Fixture – 225-205

• Rapid opening and closing is performed with a leverage ration of 100 to 1
• Patented single lever action activates the indexing mechanisim.
• Convenient ratchet mounted on front of spindle provides rapid indexing.
• Precision ground Index plate has 24 indexing positions (15″ increments).
• Threaded Spindle is Hardened & Ground 2-1/4″ – 8 TPI
• Accepts all 5C collets

Specifications
Dividing Spindle Concentricity.0002″

Cylindrical center bore (part 1) concentricity.0008″

Spindle center line parallelism.0008″

Base to face squareness.0008″

Center slot to dividing spindle concentricity.0008″

Lateral offset of central slot to dividing spindle.0008″
