Phase II Ultrasonic Thickness Gauge – UTG-1500

Phase II Ultrasonic Thickness Gauge – UTG-1500

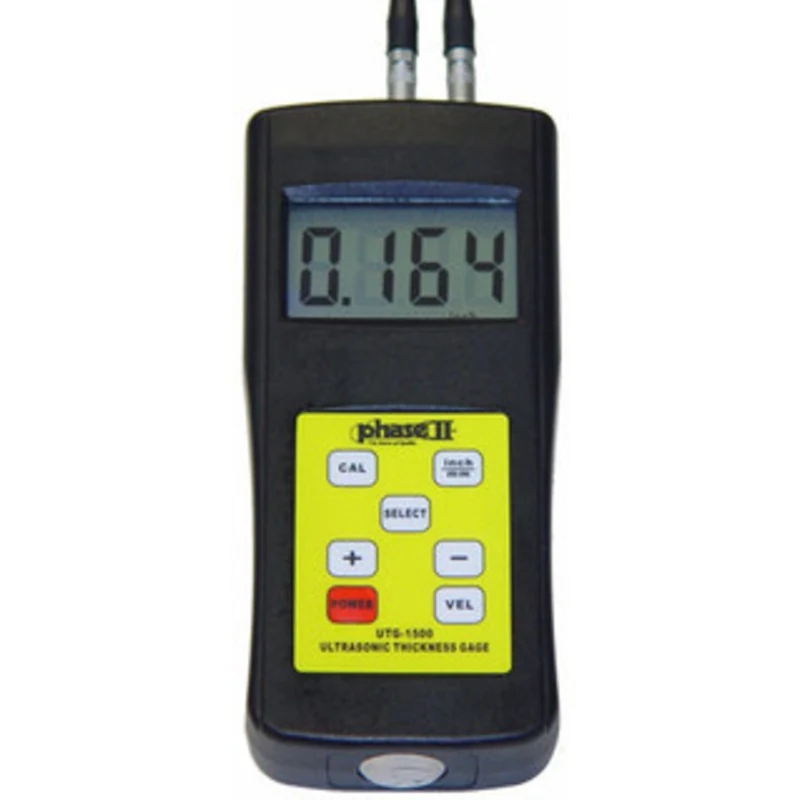

The new PHASE II UTG-1500 is a hand held microprocessor controlled ultrasonic thickness gauge specifically designed for measuring the thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave-conductor as long as it has parallel top and bottom surfaces. With uses in many areas of industry, the UTG-1500 ultrasonic thickness gauge can perform precise thickness measurements on various types of raw materials, component parts and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion.

The UTG-1500 ultrasonic thickness gauge is extremely easy to use. After a simple calibration to a known thickness or sound velocity, the gauge will give accurate readings in inches or millimeters.

Specifications:

Display type
Large 4-digit LCD

Minimum display unit
0.001″ / 0.1mm

Measuring range:
0.040″ – 8″ (0.1mm-200mm) in steel w/ standard probe
(other values depending on material)

Lower limit steel pipes
Min. dia. 0.8″ x 0.1″ (20mm x 3mm)

Display accuracy:
+-0.1mm

Sound velocity range
1640 – 29,527 ft/s (500 – 9000m/s)

Operating temperature
32-122 degrees F (-5 – 40 degrees C)

Frequency
5MHz

Update range
4Hz

Power supply
1.5v AA alkaline batteries (4pc)

Battery life
Approx. 250 hours / battery set

Dimensions
4.9″ x 2.6″ x 0.9″ (161x 69 x 32mm)

Weight
0.7lbs (300g)

Operating current
<20mA (3V)
