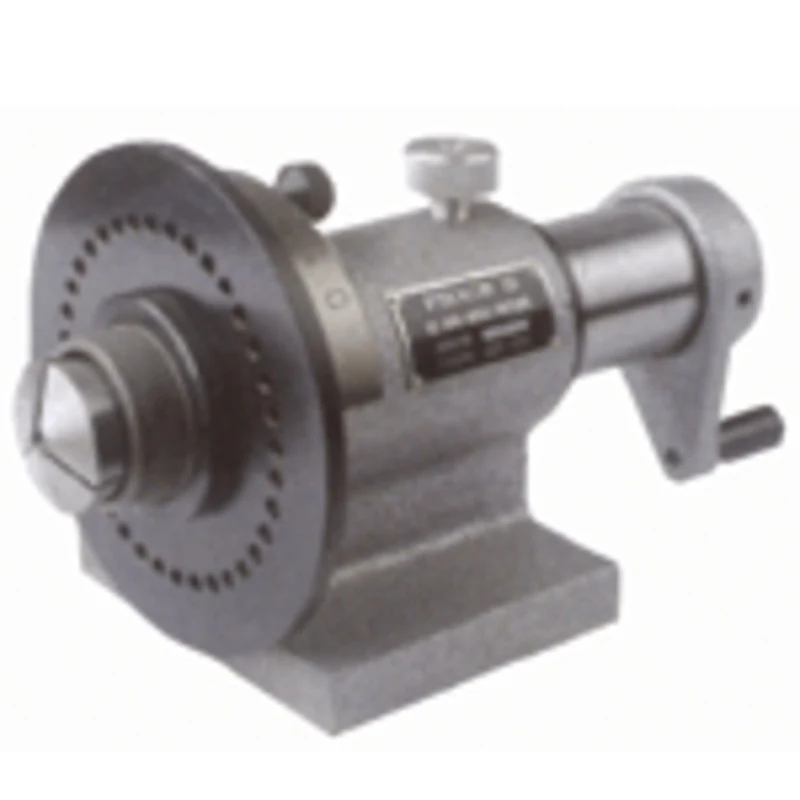

Precise 5-C Collet Spin Index Fixture – 10-500-1

Precise 5-C Collet Spin Index Fixture – 10-500-1

Features:

• Accepts 5C collets up to 1-1/8″ capacity.
• Multi-purpose accessory.
• Index plate has precise (10) 36-hold circle.
• Vernier setting to 1.
• 2-1/16″ spindle travel for flute grinding.

Specifications:
Dividing spindle concentricity.0004″

Cylindrical center bore (per 1″) concentricity.0012″

Spindle center line parallelism to base.0008″
