Precise Caliper Extenders Accessory Kit – CXT-005

Precise Caliper Extenders Accessory Kit

Kit Contains:

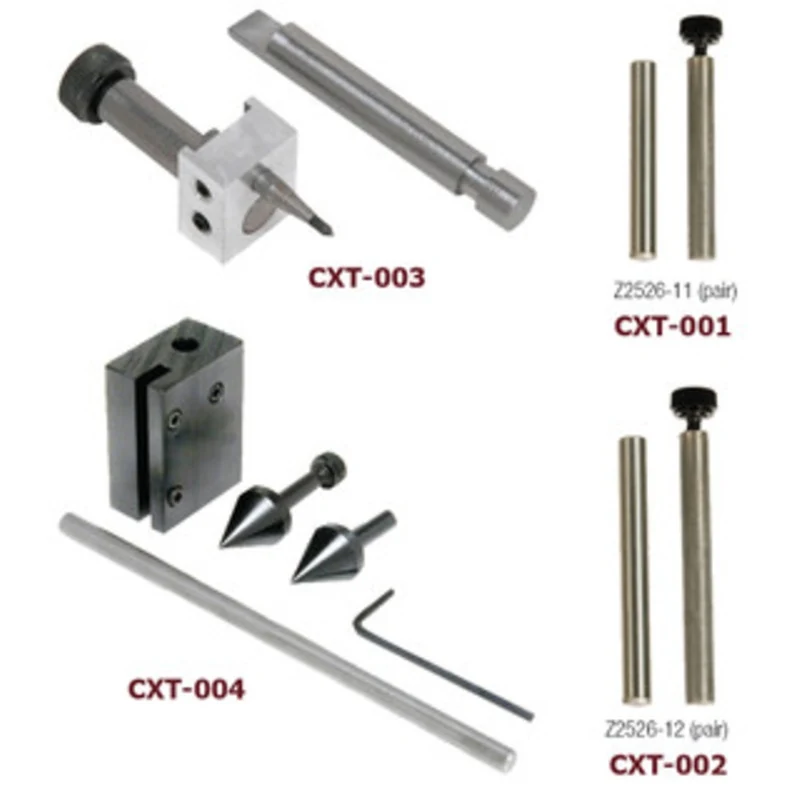

Projection Pins, 1″ (Z2526-11) & 1-1/2″ (Z2526-12)

• All Caliper Extender Kits come equipped with 1/2 projection length pins. These pins extend 1/2 under the Extender Bar. You can order replacements for the originals included with your kit (Part # Z2526-10), or order the optional longer pins for added clearance. (Part #s Z2526-11 and -12)

Centerline Gage Pins (Z2526-CG)

• For measuring centerline distances between hole centers.

  Kit includes special end block, 2 points (.620 diameter tapers to a sharp point), special 6″ centerline calibration bar, hex key, and complete instructions.

Layout Kit (Z2526-LK)

• A specially adapted carbide scriber point allows you to scribe and make markings with the caliper.

  The special carbide scribing point attachs to the Extender Bar, and the special projection pin with a milled flat goes into the block attached to the movable jaw of the caliper. The flat of the pin goes against the edge of your material, and you scribe the line with the scriber’s carbide point.

for use with Precise Cal-X-Tenders
