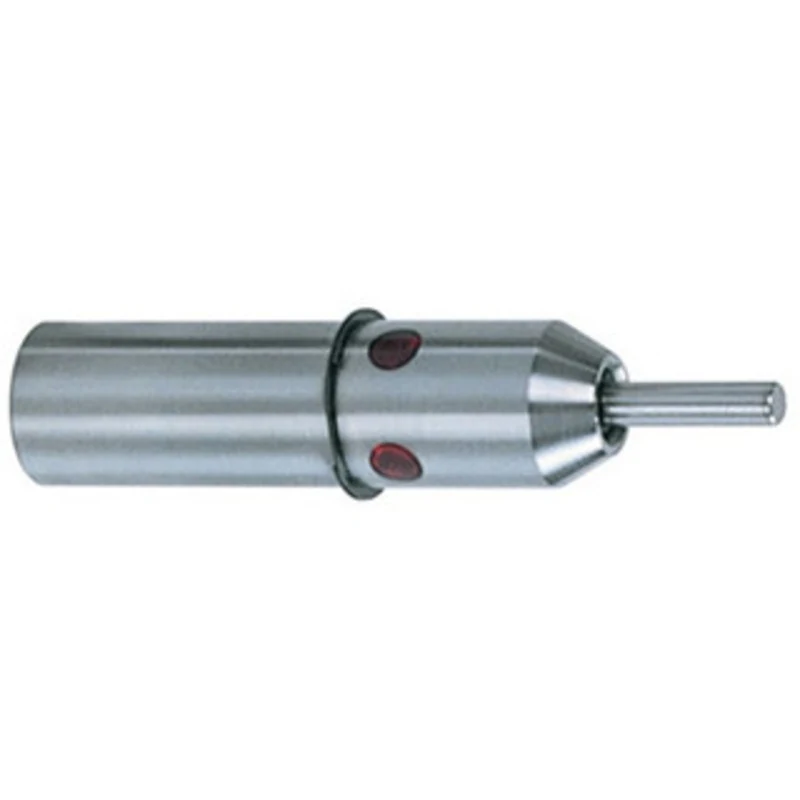

Precise Electronic 3D Sensor- TAC-313
- A New concept for fast and accurate “zero” finding and starting point for all three axes x, y, z.
- Made of high quality tool steel hardened to RC60, precision ground on all surface.
- Operate in vertical or horizontal position.
- Over travel safety zone in all three axes:
- x,y –.200 inch or 5 mm
- z –.200 inch or 5 mm
- Repeatabilitiy.0005 inch or 0.015 mm
X & Z Finder For CNC Turning Center
- Feed tool toward probe on “x” or “z” axes.
When a contact is made betten tool and probe red light will illuminate.
- ON “X” Axis – Half diamter of probe (.100″ indicate exact center location.
- ON “Z” Axis – Redlight indicateds 2.000.000″ / 50 mm 0.006 from reference surface.
X, Y, Z Finder For Machining Center
- ON ” X and “Y” Axis – Feed carefully toward worpies. When a contact is made between probe and workpiece, red light will illumincate. Half diameter of probe (.100″) inidicates exact center of machine spindle.
- ON “Z” Axis – Red light indicates 2.0000″.0002 / 50 mm 0.006 from reference surface
