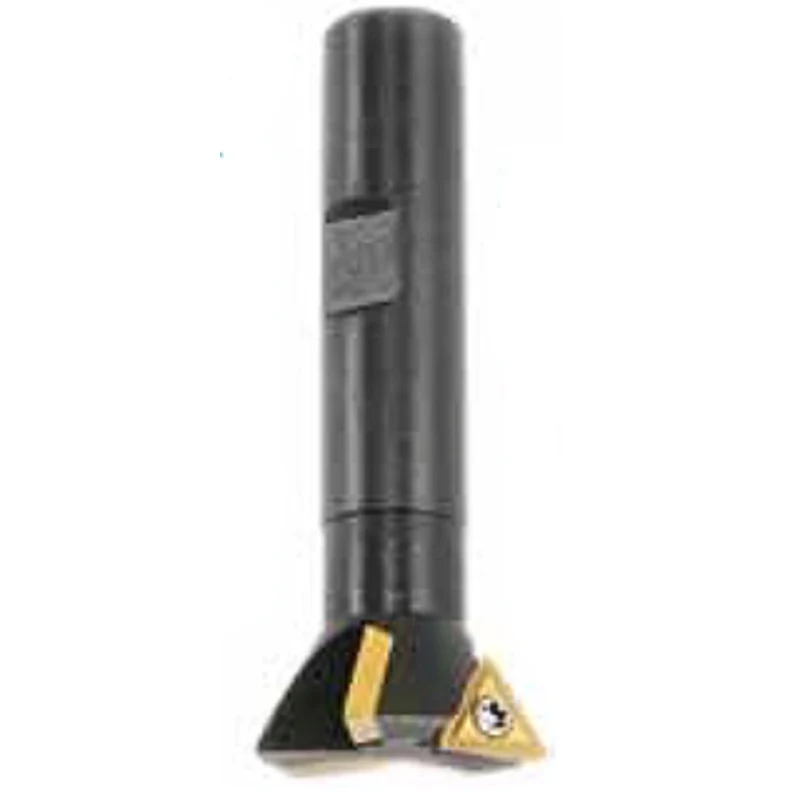

Precise Indexable 60 Dovetail Cutter, 1/2 Dia. x 3/8 Shank – 404-191-1

Precise Indexable 60 Dovetail Cutter, 1/2″ Dia. x 3/8″ Shank – 404-191-1

• Use on cast steel, carbon steel, alloy, hardened steels and stainless steel
• No regrinding needed
• Torx screw locking system
• Weldon shank
• High rate of material removal
• A 90 degree slot must first be cut into the material allowing clearance for the dovetail neck during the final cut
• Precision machine alignment pad integrated into each pocket

Cutting Diameter
1/2

Max Depth of Cut – Dovetail Cutter
0.325

Shank size
3/8

Overall Length
2.39

Number of Flutes
1

Insert Style
TDEX

Insert Size
21, 21.51, 52
