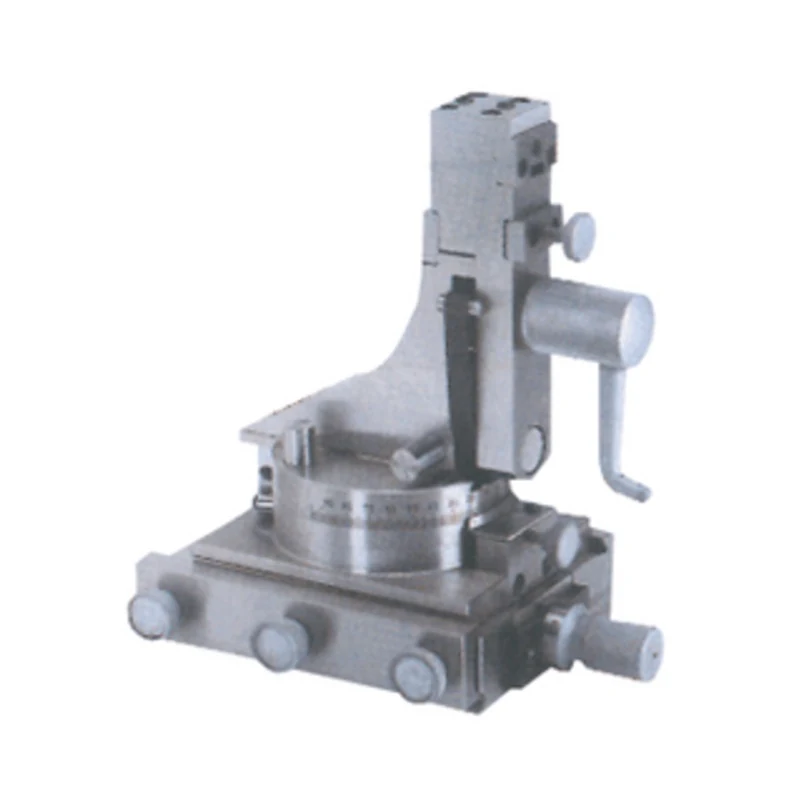

Precise Profile Diamond Radius & Angle Dresser, Made in Taiwan – PRA-110T

Precise Profile Diamond Radius & Angle Dresser, Made in Taiwan – PRA-110T

• Extremely accurate, this Radius and angle Dresser can dress 2 angles tangent to a radius in one continuous motion to within.0001″ (0.002mm).
• Fast and easy set-ups without elaborate accessories; only tools needed are a micrometer and a hex key wrench.
• Set-up to dress 2 angles takes less than 15 seconds and 1 radius plus 2 angles approx. 3 minutes only.
• Precise and sharp contours, concave or convex, are consistantly obtained at a full 180 range.
• Made from hardened, ground, and lapped allow tool steel.
• No exposed wear surfaces, swivel on sealed bearings.
• Wheel dresser is furnished complete with base featuring one inch adjustment.
• Graduated micrometer knob provides fine adjustment to accurately dress small radii.

Specifications:

• Dressing Capacity: 8″ Wheel Diameter
• Range: Convex Radii 0 to 1.500″
  Concave Radii.030″ to 1.500″
• Height to center of diamond: 6-1/2″
• Overall Height: 7″
• Base Dimensions: 4-3/4″ x 3-1/2″ x 1-1/4″ high
• Weight: 23 lbs.

View Replacement Diamonds:

• 3900-0097
• 3900-0077
• 3900-0078
• 3900-0086
• 3900-0087
• 3900-0088
