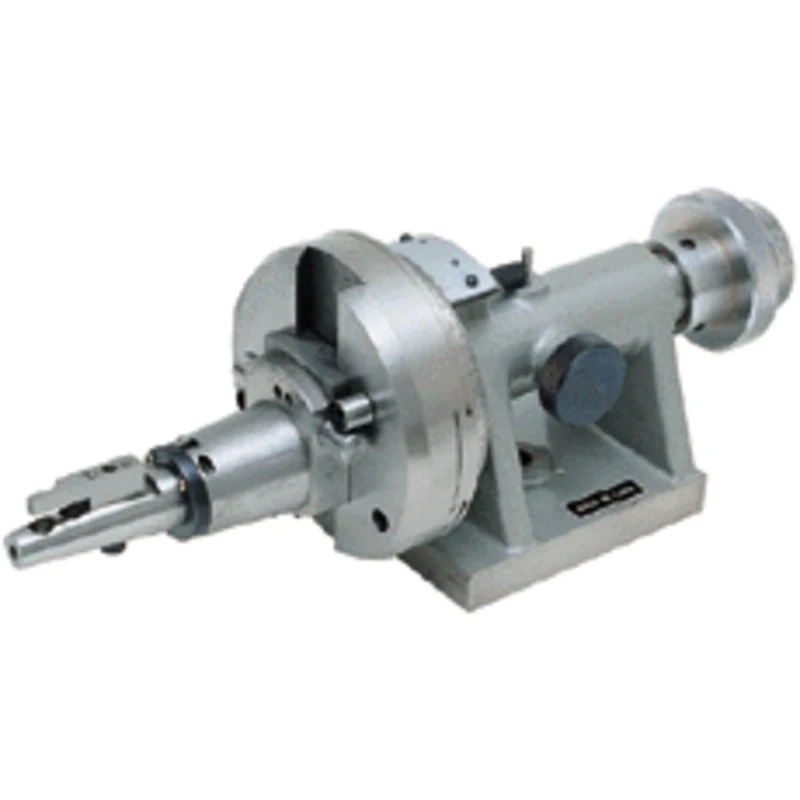

Precise Radius and Angle Dresser
Complete with Diamond & Case
- Positive setting of the diamond to absolute center with the special gage included with the dresser.
- Simple, fast, accurate radius setting no heightgage or other set-up aids required. Radius is set on the grinder by measuring over the two pins or by inserting a gage block, as shown, for direct reading inside or outside radius is determined simply by sliding the dowel pin to the right for concave and the left for convex.
- 4 x 90 graduation in full 360 circle. Chrome plated.
- One push pull type knob for radius & angle control & for safer & faster operations.
- 5 minute vernier reading.
Any Wheel Form. The grinding wheel may be dressed to any desired form-any combination of tangents and/or radii, either convex or concave.
Specifications:
Convex radii
0-2-1/4″ Tangent
Maximum diameter of wheel
8″
Concave radii
0-4″
Overall length
14″
Either side of center
1-7/8″
Weight complete
35 lbs.
Center line of tool
3.400″
Base size
7-1/16 x 3-15/16
View Replacement Diamonds:
- 3900-0097
- 3900-0077
- 3900-0078
- 3900-0086
- 3900-0087
- 3900-0088
