Home › Cutting Tools & Abrasives › End Mills › PROMAX Tools 1, 1-3/4 LOC, 1 Shank Diam, 4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 111 111-06412 – 75943274
PROMAX Tools 1, 1-3/4 LOC, 1 Shank Diam, 4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spira...
End Mills

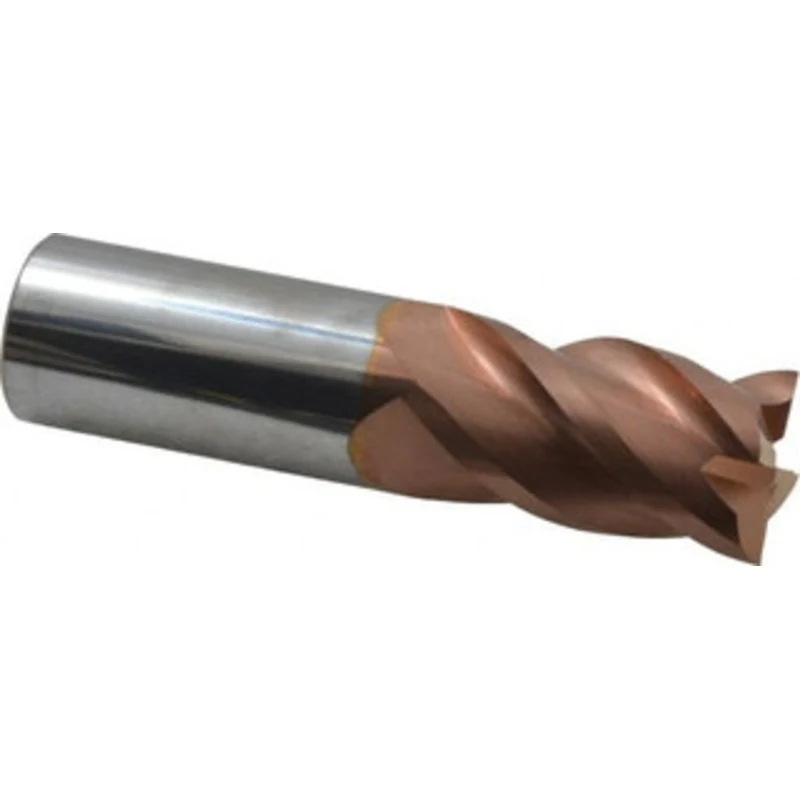

PROMAX Tools 1, 1-3/4 LOC, 1 Shank Diam, 4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 111 111-06412 – 75943274

Original price was: $302.85.Current price is: $90.86.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 75943274
CATEGORY: End Mills
Description

PROMAX Tools 1″, 1-3/4″ LOC, 1″ Shank Diam, 4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 111

Manufacturer Part #: 111-06412

S/N: 75943274

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.7500
Length of Cut (Inch)
1-3/4
Shank Diameter (Inch)
1
Shank Diameter (Decimal Inch)
1.0000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Square
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
-0.002 to +0.000 in
Shank Diameter Tolerance
+0.0001/-0.004 in
Series
111
