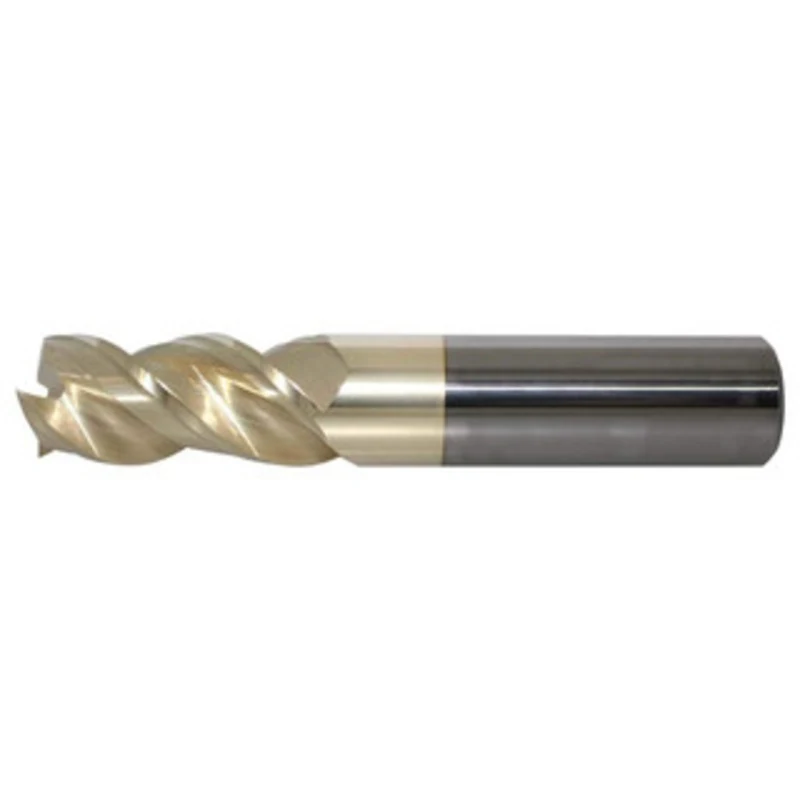

PROMAX Tools 1/2 Diam, 5/8 LOC, 1/2 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide, Single End Square End Mill ZrN Coated, Variable Helix, Centercutting, RH Flute, RH Cut US362122 – 12015038

PROMAX Tools 1/2″ Diam, 5/8″ LOC, 1/2″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide, Single End Square End Mill ZrN Coated, Variable Helix, Centercutting, RH Flute, RH Cut

Manufacturer Part #: US362122

S/N: 12015038

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
46/48
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Standard
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
US362
