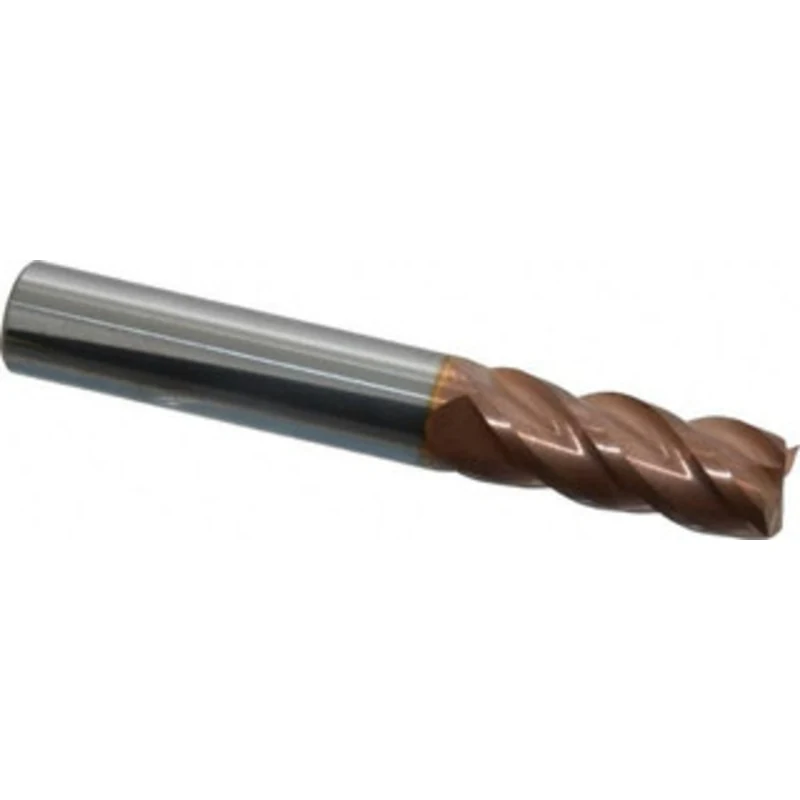

PROMAX Tools 3/8, 7/8 LOC, 3/8 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Right Hand Cut, Right Hand Flute, Series 111 111-02412 – 40621252

PROMAX Tools 3/8″, 7/8″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 40 Helix, Right Hand Cut, Right Hand Flute, Series 111

Manufacturer Part #: 111-02412

S/N: 40621252

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.8750
Length of Cut (Inch)
7/8
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Primary Workpiece Material
High Temperature Alloy, Stainless Steel, Steel
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Square
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
111
