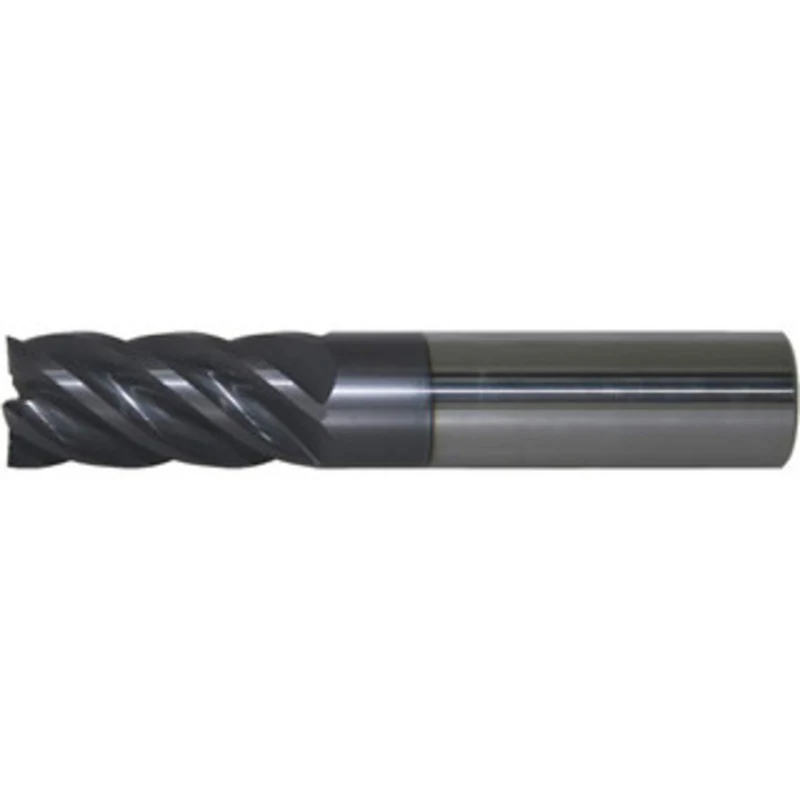

PROMAX Tools Square End Mill, 1/2 Dia, 5/8 LOC, 1/2 Shank Dia, 2-1/2 OAL, 5 Flutes, Solid Carbide, Single End, AlTiN Finish, 40 Helix, Centercutting, RH Cut, RH Flute, Series 112 112-03224 – 04120341

PROMAX Tools Square End Mill, 1/2″ Dia, 5/8″ LOC, 1/2″ Shank Dia, 2-1/2″ OAL, 5 Flutes, Solid Carbide, Single End, AlTiN Finish, 40 Helix, Centercutting, RH Cut, RH Flute, Series 112

Manufacturer Part #: 112-03224

S/N: 04120341

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.63
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
2.5
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
40
Coating/Finish
AlTiN
Variable Helix
No
Variable Index
No
Shank Type
Square
Material Grade
Micrograin
Mill Diameter Tolerance
-0.002 to +0.000 in
Shank Diameter Tolerance
+0.0001/-0.004 in
Series
112
UNSPSC Code
27112803
