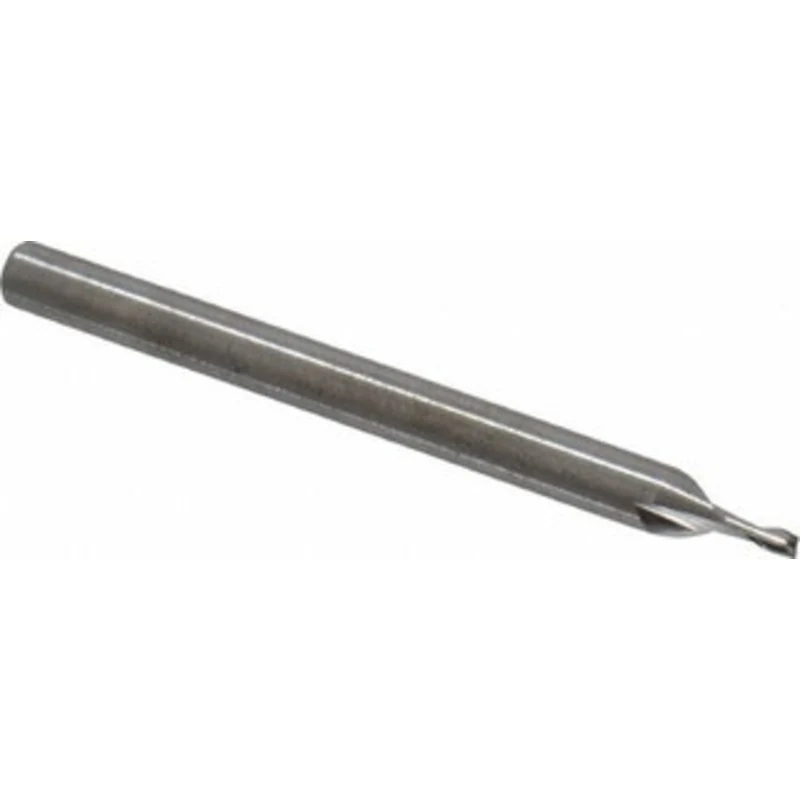

RobbJack 0.045, 0.0675 LOC, 1/8 Shank Diam, 1-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SS-2 SS-2-045 – 04468864

RobbJack 0.045″, 0.0675″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series SS-2

Manufacturer Part #: SS-2-045

S/N: 04468864

UNSPSC: 27112803

UPC: 662966230480

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0450
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.0675
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Tuffy
Length Type
Stub
Mill Diameter Tolerance
+0.0005/-0.0005 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.040/-0.040 in
Series
SS-2
