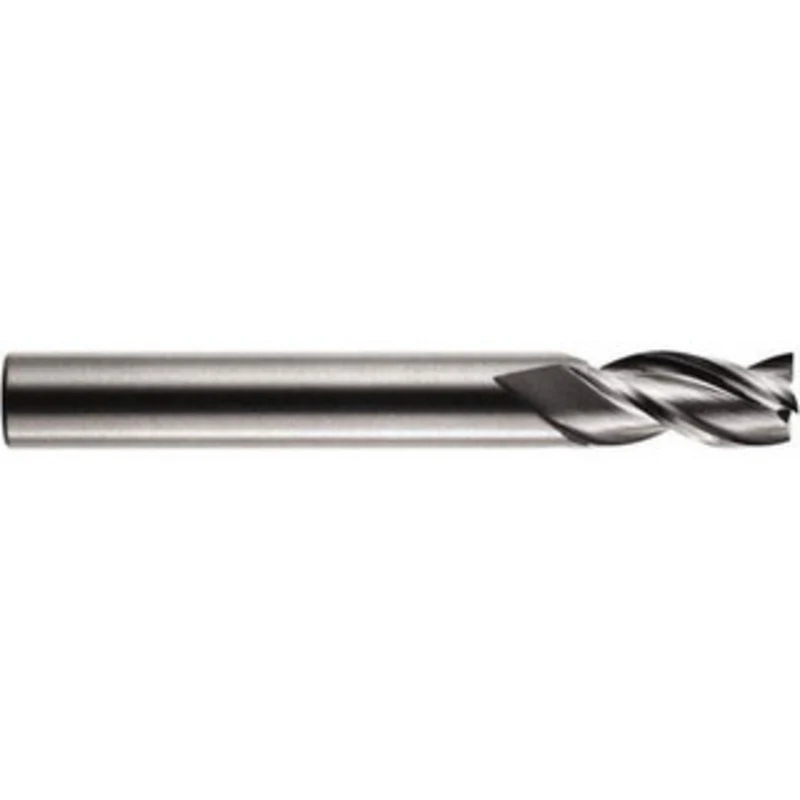

RobbJack 1/2, 1-1/8 LOC, 1/2 Shank Diam, 3 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series A1-303 A1-303-16 – 80386659

RobbJack 1/2″, 1-1/8″ LOC, 1/2″ Shank Diam, 3″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series A1-303

Manufacturer Part #: A1-303-16

S/N: 80386659

UNSPSC: 27112803

UPC: 662966607954

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.1250
Length of Cut (Inch)
1-1/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
35
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Standard
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
-0.001 to -0.0015 in
Shank Diameter Tolerance
-0.0001/-0.0002 in, -0.002/-0.005 mm
Overall Length Tolerance
+0.060/-0.060 in
TIR Maximum (Decimal Inch)
0.0005
TIR Maximum (mm)
0.01
Series
A1-303
