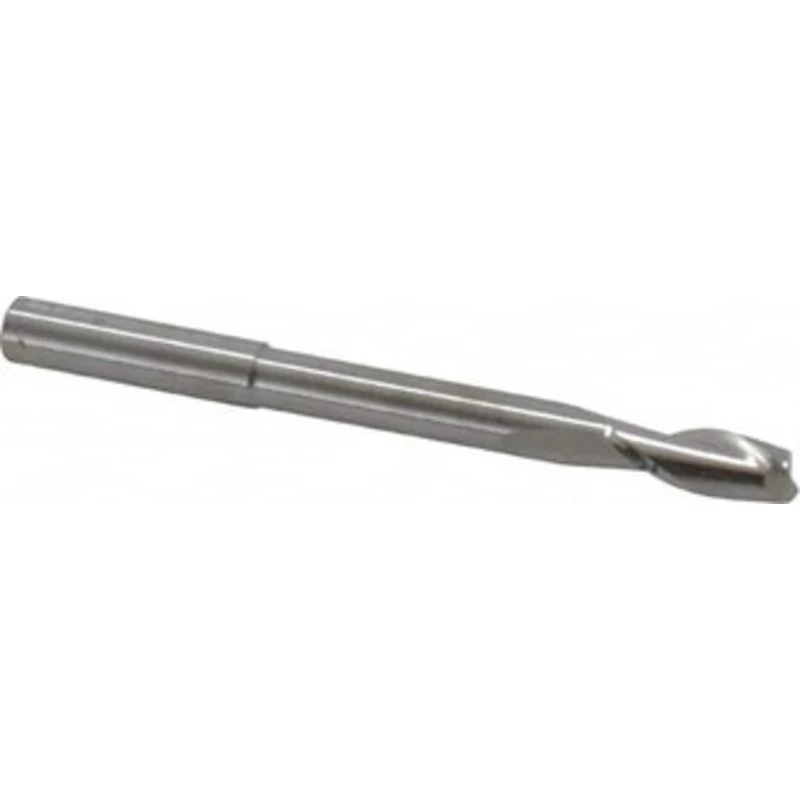

RobbJack 1/4, 5/8 LOC, 1/4 Shank Diam, 3 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2 Extended Reach, Series EX-204 EX-204-08 – 03680980

RobbJack 1/4″, 5/8″ LOC, 1/4″ Shank Diam, 3″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, 2″ Extended Reach, Series EX-204

Manufacturer Part #: EX-204-08

S/N: 03680980

UNSPSC: 27112803

UPC: 662966212035

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Tuffy
Length Type
Extra Long
Reach Length (Inch)
2
Reach Length (Decimal Inch)
2.0000
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
EX-204
