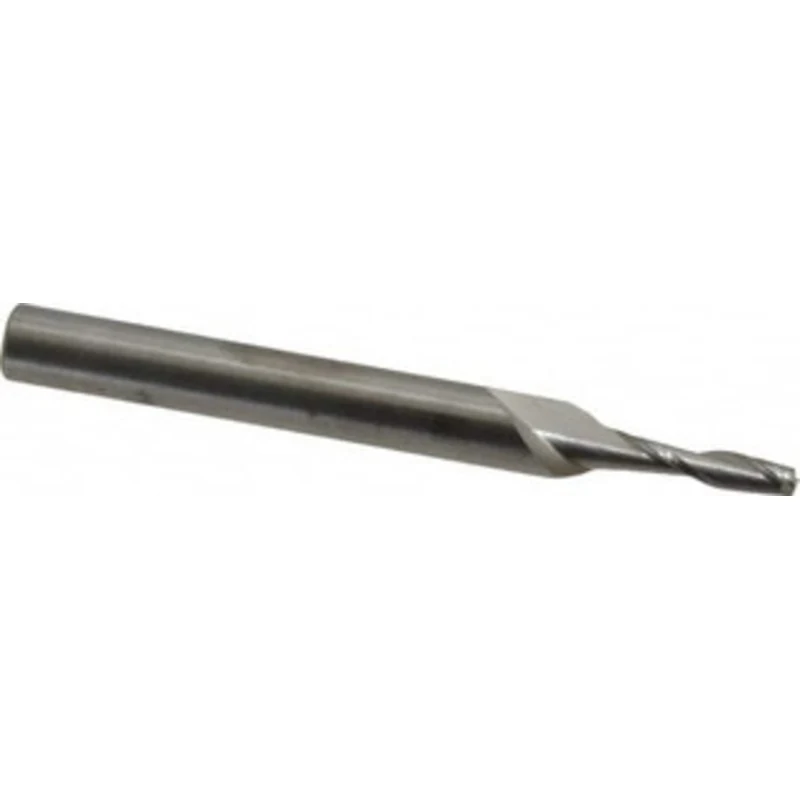

RobbJack 1/8, 1/2 LOC, 1/4 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series C8-203 C8-203-04 – 03856200

RobbJack 1/8″, 1/2″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series C8-203

Manufacturer Part #: C8-203-04

S/N: 03856200

UNSPSC: 27112803

UPC: 662966209042

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
C2
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
C8-203
