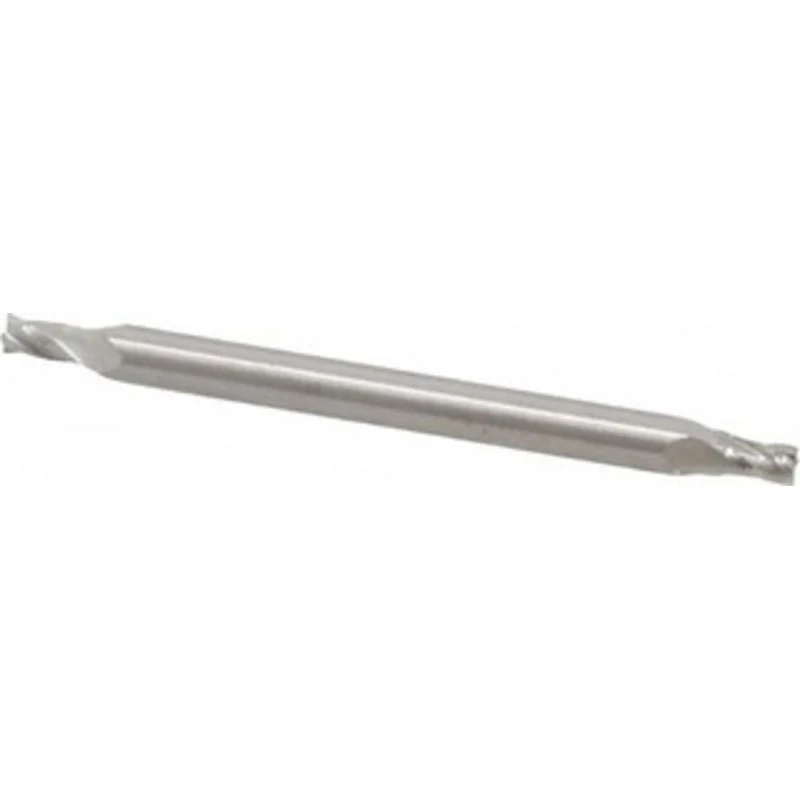

RobbJack 1/8, 3/16 LOC, 3/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series T6-400 T6-400-04 – 01551902

RobbJack 1/8″, 3/16″ LOC, 3/16″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series T6-400

Manufacturer Part #: T6-400-04

S/N: 01551902

UNSPSC: 27112803

UPC: 662966239056

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.1875
Length of Cut (Inch)
3/16
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Tuffy
Length Type
Stub
Mill Diameter Tolerance
+0.0005/-0.0005 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
T6-400
