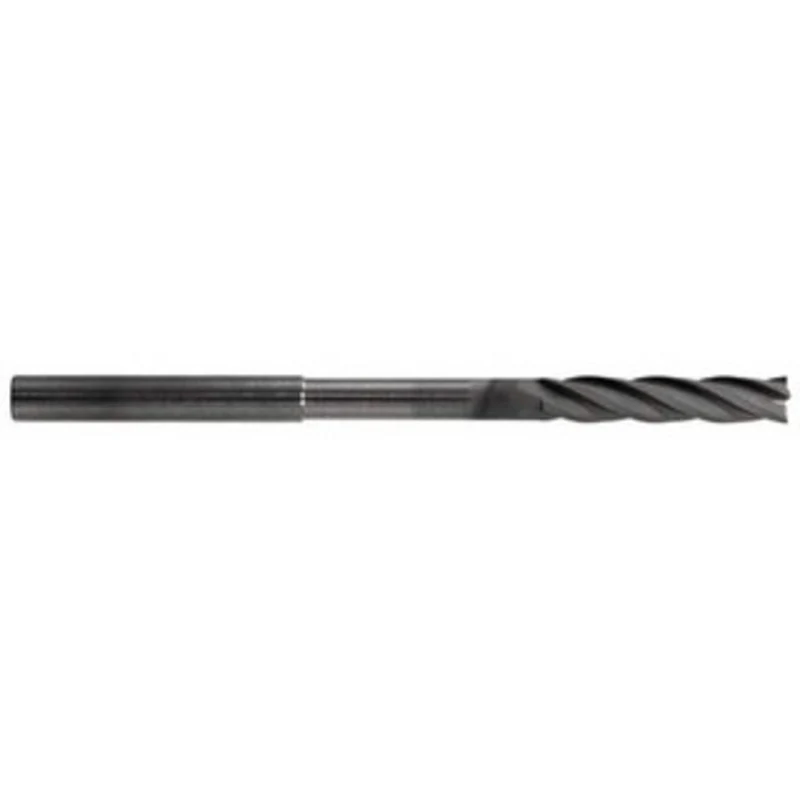

RobbJack 1/8, 5/8 LOC, 1/8 Shank Diam, 3 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Diamond Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, 1-1/4 Extended Reach, Series GM-402 GM-402-04 – 41234857

RobbJack 1/8″, 5/8″ LOC, 1/8″ Shank Diam, 3″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Diamond Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, 1-1/4″ Extended Reach, Series GM-402

Manufacturer Part #: GM-402-04

S/N: 41234857

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Extended Reach
Yes
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
C2
Length Type
Regular
Reach Length (Inch)
1-1/4
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Series
GM-402
