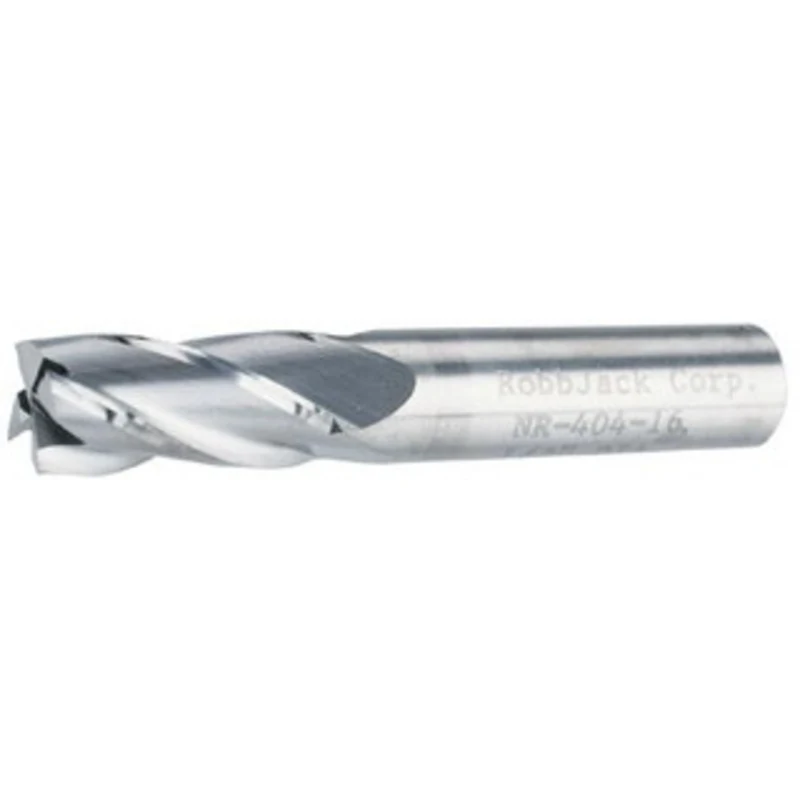

RobbJack 13/32, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series NR-404 NR-404-13 – 00491928

RobbJack 13/32″, 1″ LOC, 7/16″ Shank Diam, 2-3/4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series NR-404

Manufacturer Part #: NR-404-13

S/N: 00491928

UNSPSC: 27112803

UPC: 662966222232

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4063
Mill Diameter (Inch)
13/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
7/16
Shank Diameter (Decimal Inch)
0.4375
Overall Length (Inch)
2-3/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
C2
Length Type
Regular
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
NR-404
