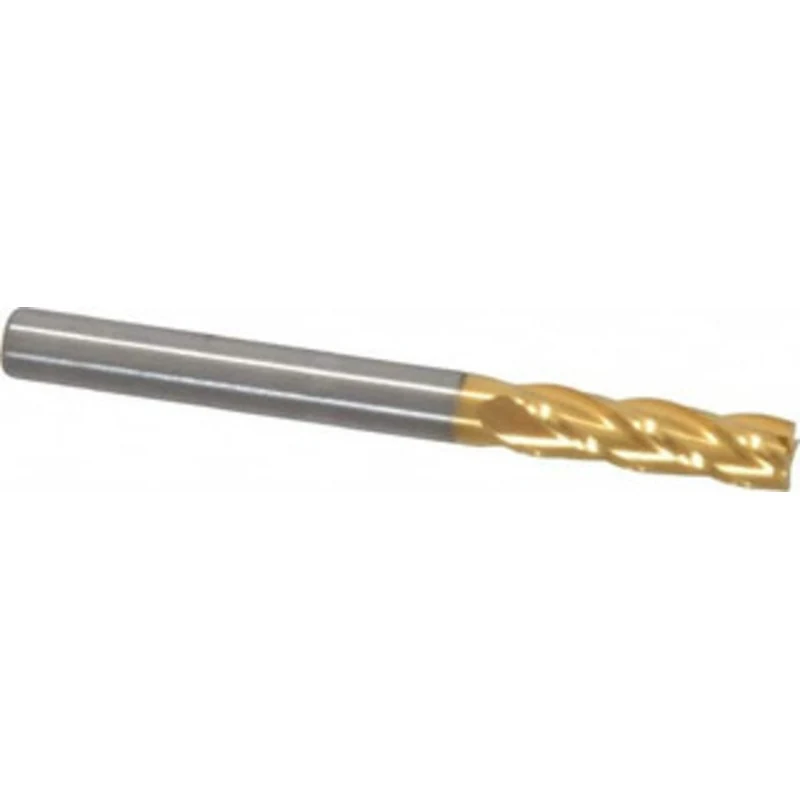

RobbJack 3/16, 5/8 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series ST-430 ST-430-06-T – 05311246

RobbJack 3/16″, 5/8″ LOC, 3/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series ST-430

Manufacturer Part #: ST-430-06-T

S/N: 05311246

UNSPSC: 27112803

UPC: 662966233061

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Shank Type
Straight-Cylindrical
Material Grade
Super Tuffy
Length Type
Regular
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
ST-430
